JHDS-019 Outdoor Garden Lamp Design for Patio with LED Light Source

Short Description:

This garden lamp design for Patio with stylish design and full of modern atmosphere. It matches well with modern style architecture and commercial centers worldwide. The light use High quality energy-saving LED light source with guaranteed quality, soft light effect, no flicker, economical and durable with long service life.

The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source. Waterproof grade can reach IP65 after professional testing.


Product Detail

Product Tags

Product Description

Day

Night

● We use never rust die-casting aluminium material for housing with pure polyester electrostatic spraying to beautify it. The internal reflector is a high-purity alumina, which can effectively prevent glare. Waterproof grade can reach IP65 after professional testing.



  The transparent cover is PS or PC with good light conductivity and no glare due to light diffusion. It has milky white or transparent colors can choose, and the injection molding process is used.



 ●   The light source is an LED module with the rated power 30-60wstts. Led light source has the advantages of energy conservation, environmental protection, high efficiency, and easy installation.

 We can customize and process according to the drawings provided by the customer, or design and customize according to the customer's ideas.



 Our experienced technicians, quality controllers, and skilled workers control every detail and quality of the product. From material testing to final shipment, every step is carefully inspected.

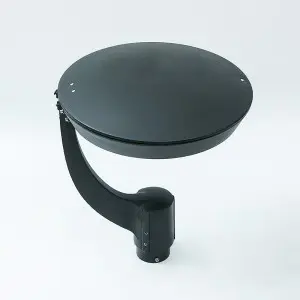

JHDS-019-1

Technical parameters

Technical  Details

Model No.

JHDS-019

Dimension(mm)

Φ440MM*H530MM

Shade  Material

High pressure die-casting aluminum lamp body

Transparent Cover  Material

PS or PC

Rated Power(w)

30W    60W

Color temperature(k)

2700-6500K

Luminous Flux(lm)

3300LM    6600LM

Input  Voltage(v)

AC85-265V

Frequency range(HZ)

50/60HZ

 Factor of Power

PF> 0.9

Rendering Index of Color

> 70

Ambient Temperature of Working

 -40℃-60℃

Ambient humidity of Working

10-90%

LED Lifespan(H)

>50000H

Protection Level

IP65

Install  Diameter(mm)

Φ60   Φ76mm

Applicable for Post

3-4m

Packing Size(mm)

500*500*350MM

N.W.(KGS)

5.0

G.W.(KGS)

6.0

Colors and Coating

In addition to these parameters, the JHDS-019 Outdoor Garden Lamp Design for Patio with LED Light Source is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

Factory Tour

Factory Tour (24)
Factory Tour (26)
Factory Tour (19)
Factory Tour (15)
Factory Tour (3)
Factory Tour (22)
