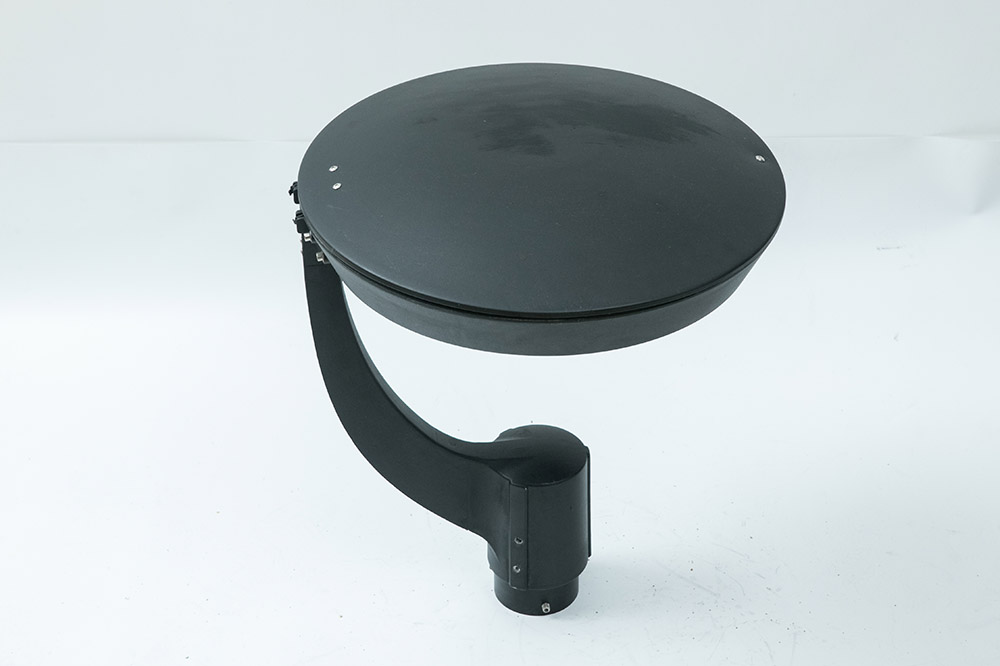

JHDS-019 Outdoor Yard Light for Patio with LED Light Source

Short Description:

This LED light for Patio with stylish design and full of modern atmosphere. It matches well with modern style architecture and commercial centers worldwide. The light use High quality energy-saving LED light source with guaranteed quality, soft light effect, no flicker, economical and durable with long service life.

Our experienced technicians, quality controllers, and skilled workers control every detail and quality of the product. From material testing to final shipment, every step is carefully inspected. It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.


Product Detail

Product Tags

Product Description

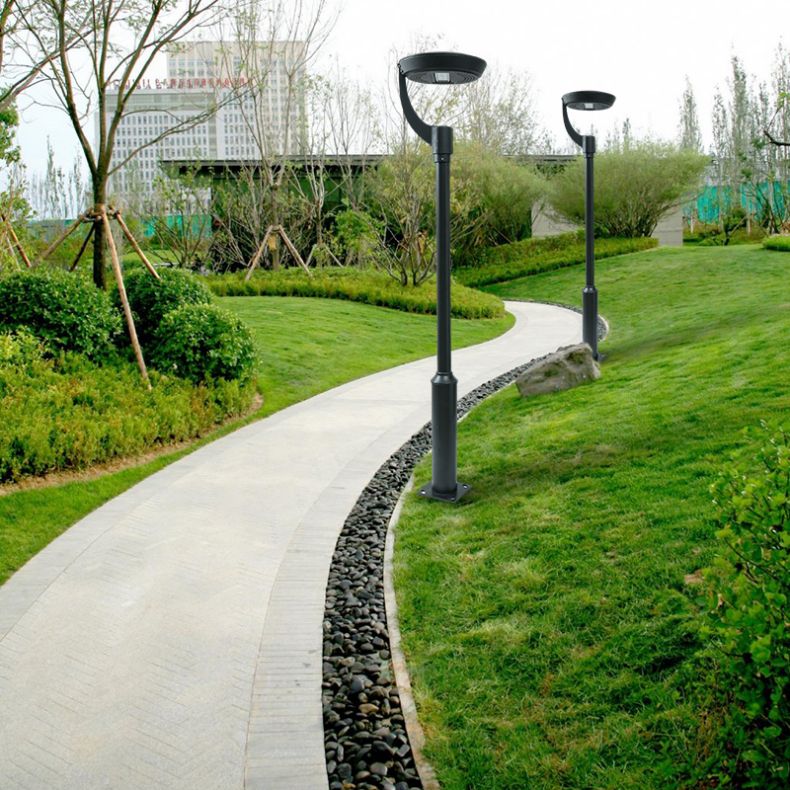

Day

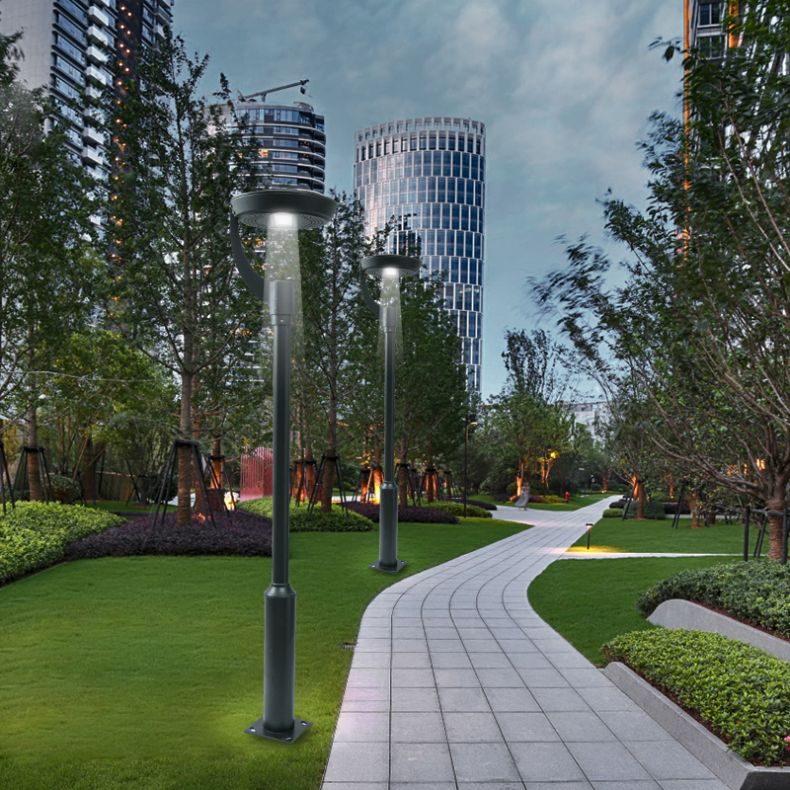

Night

● The material of this product is aluminum and the process is aluminum die-casting with the effectively prevent glare made of  high-purity alumina, which can  internal reflector. The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The transparent cover made by PS or PC,  the advantages of it with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, and the injection molding process is used.



● The light source is an LED module, and therated power can reach 30-60 watts, more watts can be customized.  The LED light source has the advantages of energy conservation, environmental protection, high efficiency, and easy installation.

●  Our outdoor garden light obtained IP 65 waterproof grade  after professional testing. The entire lamp adopts stainless steel fasteners to anti-rust. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● We can customize and process according to the drawings provided by the customer, or design and customize according to the customer's ideas.

JHDS-019

Technical parameters

Model No. :

JHDS-019

Dimension :

Φ440MM*H530MM

Housing Material:

High pressure die-casting aluminum lamp body

Lamp Shade Material:

PS or PC

Rated Power:

30W    60W

Color temperature:

2700-6500K

Luminous Flux:

3300LM    6600LM

Input  Voltage:

AC85-265V

Frequency range:

50/60HZ

Power factor:

PF> 0.9

Color Rendering Index:

> 70

Working Temperature:

 -40℃-60℃

Working humidity:

10-90%

LED Life:

>50000H

Waterproof Grade:

IP65

Install Sleeve Diameter:

Φ60  and Φ76mm

Applicable Lamp Pole:

3m to 4m

Packing Size:

500*500*350MM

Net weight(KGS):

5.0

Gross Weight(KGS):

6.0

Colors and Coating

In addition to these parameters, the JHDS-019 LED Courtyard Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

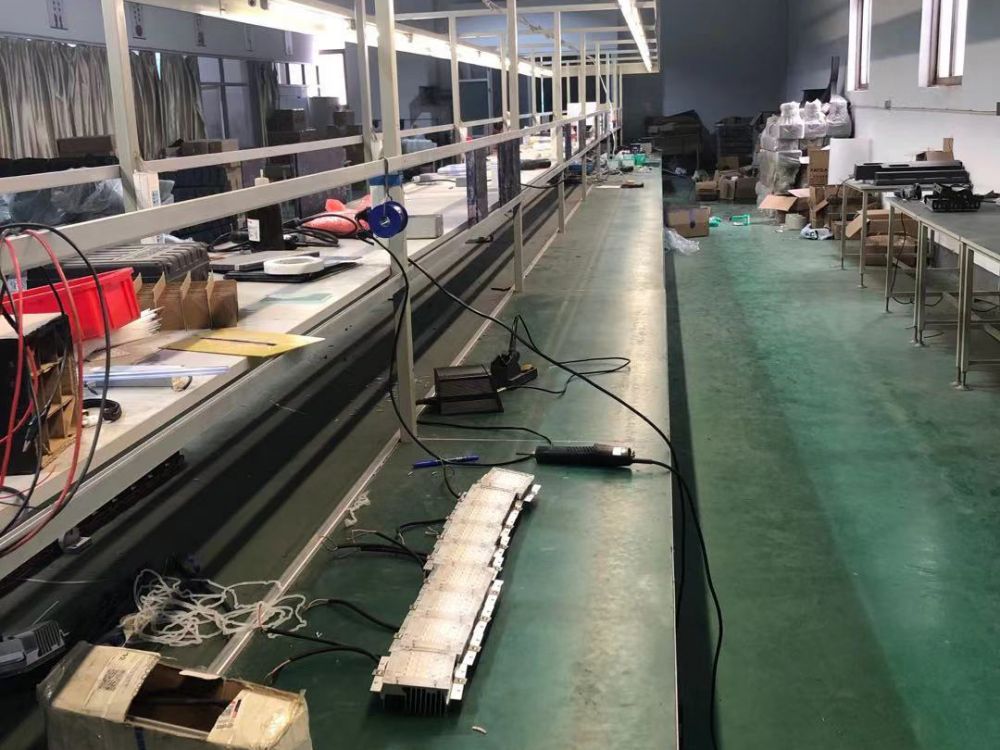

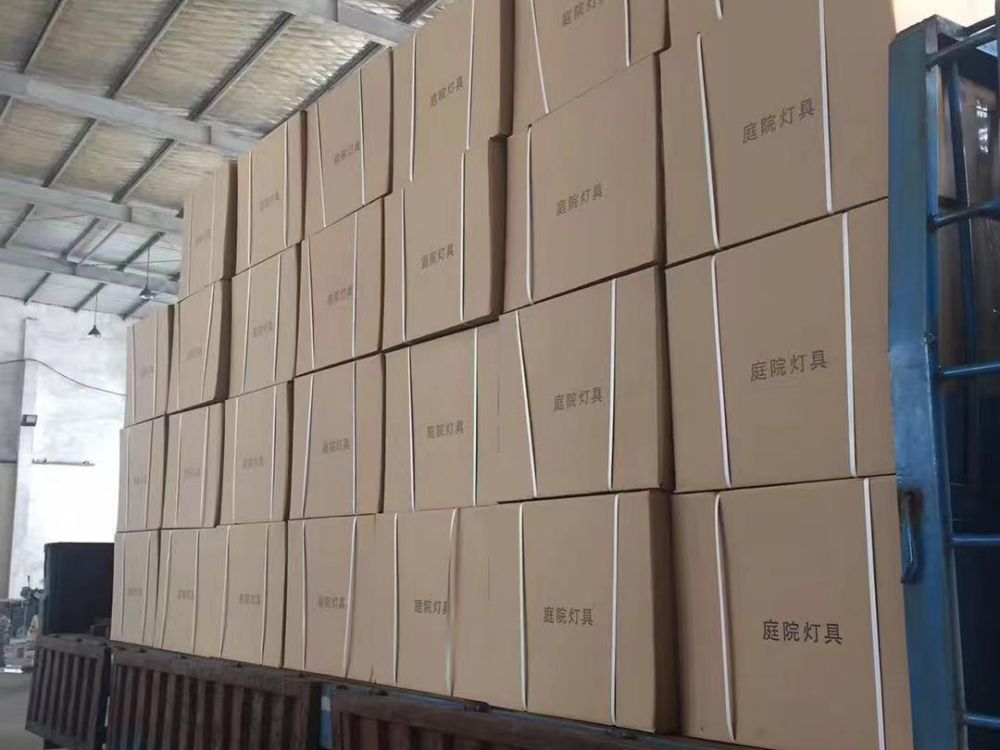

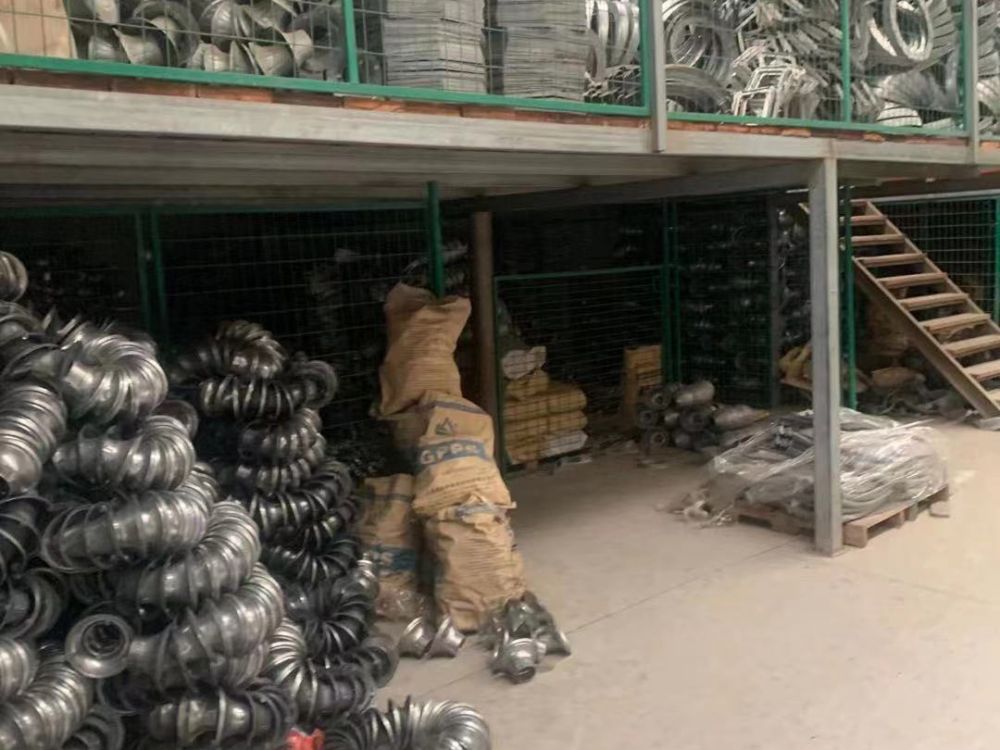

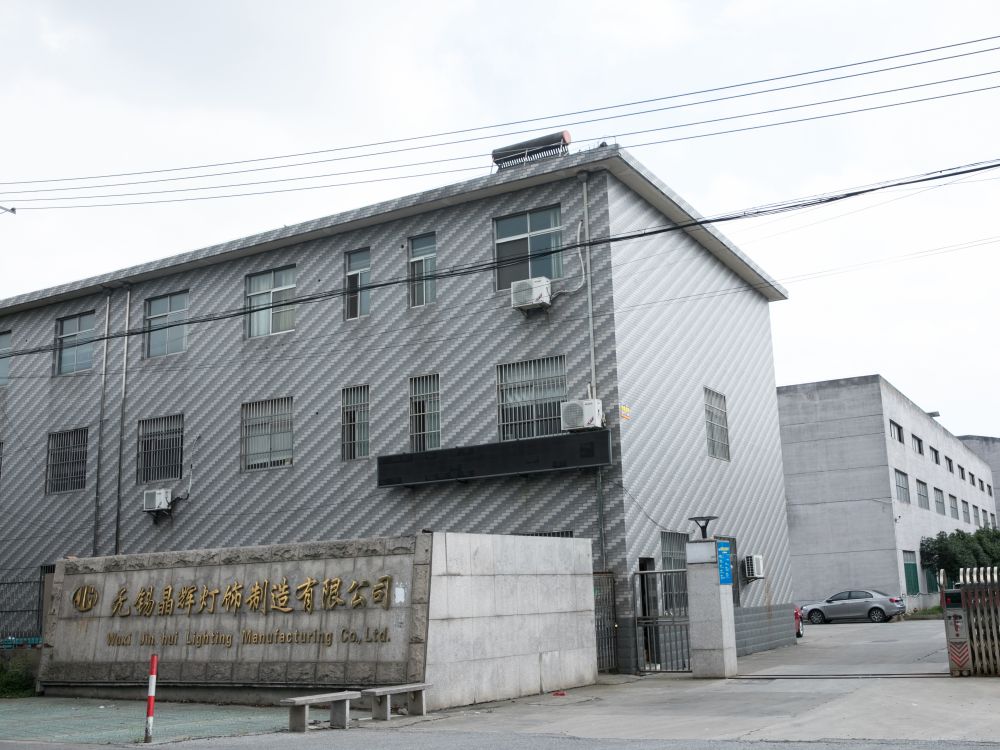

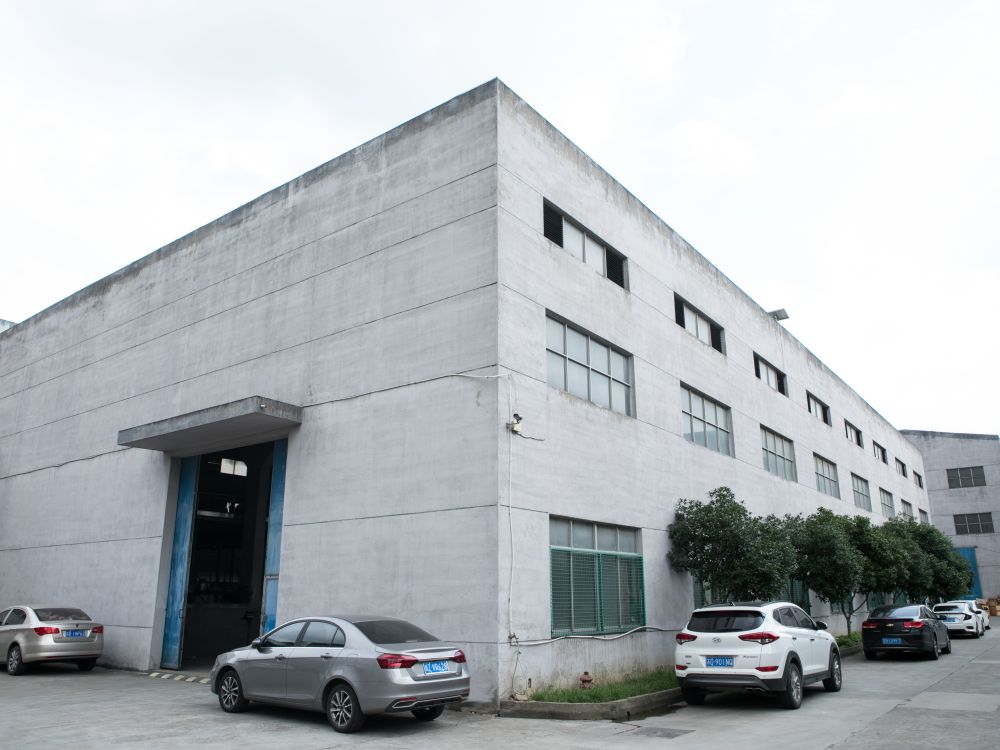

Factory Tour

Factory Tour (23)
Factory Tour (16)
Factory Tour (27)
Factory Tour (20)
Factory Tour (10)
Factory Tour (12)
