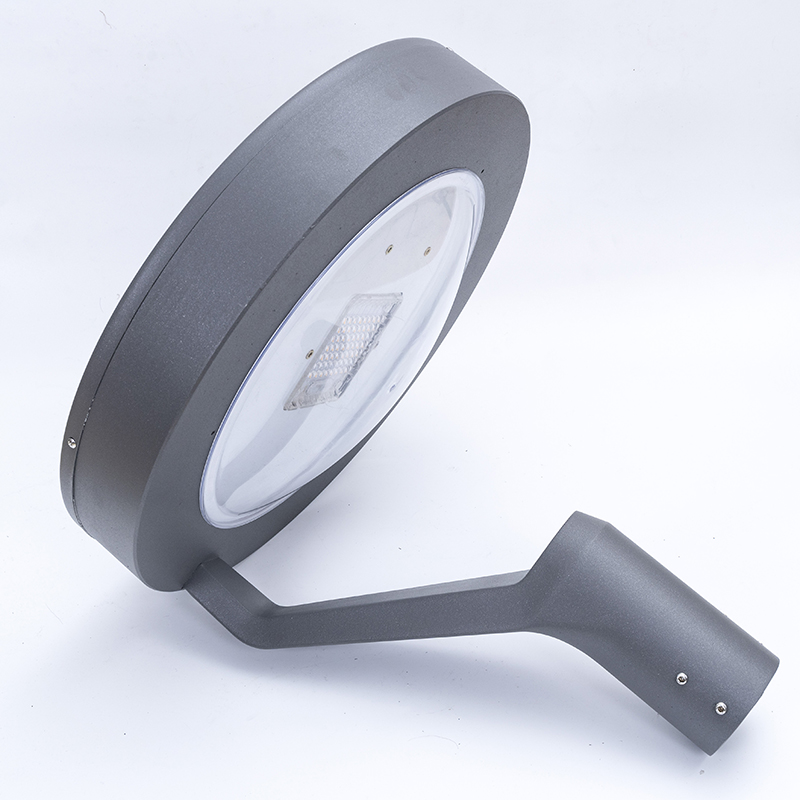

JHTY-9015 Outside Yard Light for Lighting the Garden or Parking

Short Description:

This outside yard light appearance is a single arm and a new product designed by our company . It designed for foreign markets, which is deeply loved by foreign users. We have strict quality control methods. Passed the national ISO9001 quality system certification. Our outdoor garden light ideas follow the principles of aesthetics, practicality, safety, and economy in product design. The light source equipped with high-quality LED light modules, and Soft lighting effect which illuminate your space while conserving energy. It with advantages of energy save,eco-friendly, long life and easy installation.


Product Detail

Product Tags

Product Description

Day

Night

● The pure polyester electrostatic spray to the die-casting aluminum lamp housing.  It can spay the color as you like, and to make the lamp looks nice.

The injection molding process use to the milky white colour PS and PC transparent cover with a shape of two crescents and a unique shape.

The high-purity aluminum oxide internal reflector which can effectively prevent glare.



● The light source can be driven by LED modules and chips from well-known brands. Selected high-quality LED chips. High efficiency 3030 chip. The warranty can be 3 or 5 years. Adopting IP66 waterproof and lightning protection level, it can withstand various outdoor environments and weather conditions.

●  All the fasteners use the material of stainless steel fasteners to anti-rust The arm and the light house can be disassembled for packaging to save space and transportation costs.

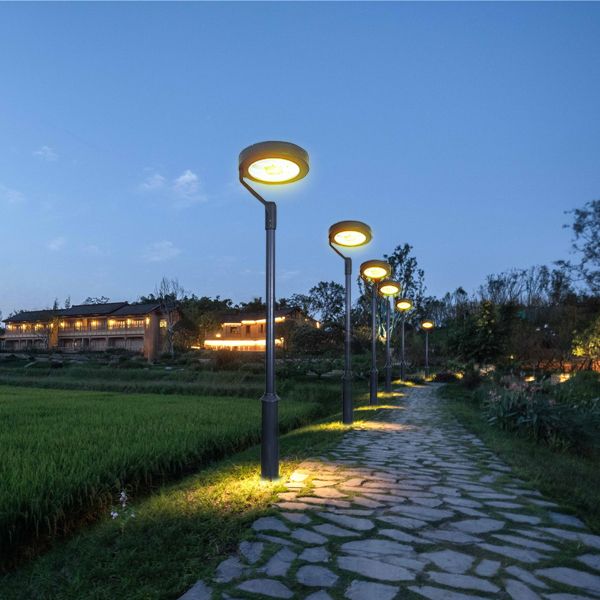

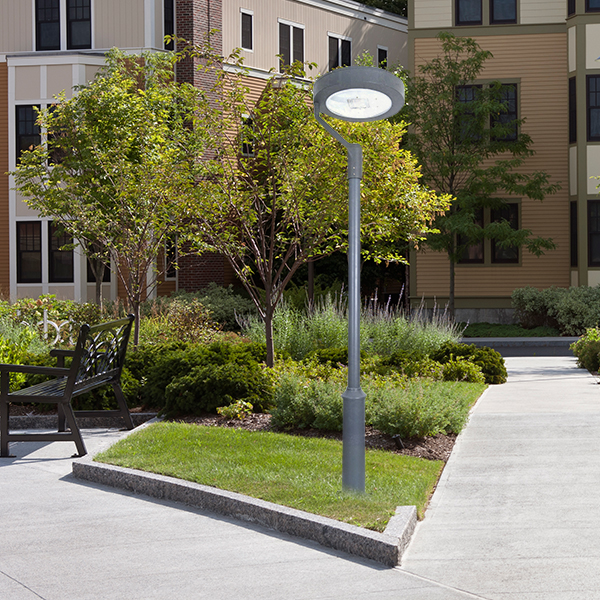

● This product can both decorate the night and illuminate the road, bringing a sense of safety to pedestrians. It can be used in outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.

Outside Yard Light

Technical parameters

Product Information

Code of Product

                                                                 JHTY-9015

Dimension(mm)

Φ500mm*H504mm

Material of Housing

High pressure die-casting aluminum

Material of Cover

PS or PC

Rated Power

30W- 60W

Color temperature(k)

2700-6500K

Luminous Flux(lm)

3600LM/7200LM

Input  Voltage(v)

AC85-265V

Frequency range(HZ)

50/60HZ

Factor of Power

PF> 0.9

Rendering Index of Color

> 70

Working Temperature(℃)

 -40℃-60℃

  Humidity of Working

10-90%

Life Time(h)

50000 hours

Certificates

IP65  ISO9001

Installation Spigot Size(mm)

60mm  76mm

Applicable Height(mm)

3m -4m

Packing (mm)

510*510*350MM/ 1 unit

Net weight(kgs)

7.87kgs

Gross Weight(kgs)

8.37kgs





Colors and Coating

In addition to these parameters, the JHTY-9015 Led Park Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)
