JHTY-8007B LED Outdoor Parking Lot Light with LED Light Source with IP66 and CE

Short Description:

The product LED courtyard light, and model of JHTY-8007B, s a newly desighed product too. Its elegant appearance is deeply loved by customers. It is also a popular style and is popular around the world. This lamp has two curved pillars and a beautiful shape. The lamp adopts IP66 waterproof and lightning protection level, which can withstand various outdoor environments and weather conditions. CE certified. Ensure that LED garden lights are suitable for outdoor use. The support of this lamp can be disassembled during packaging for better packaging and transportation.


Product Detail

Product Tags

Product Description

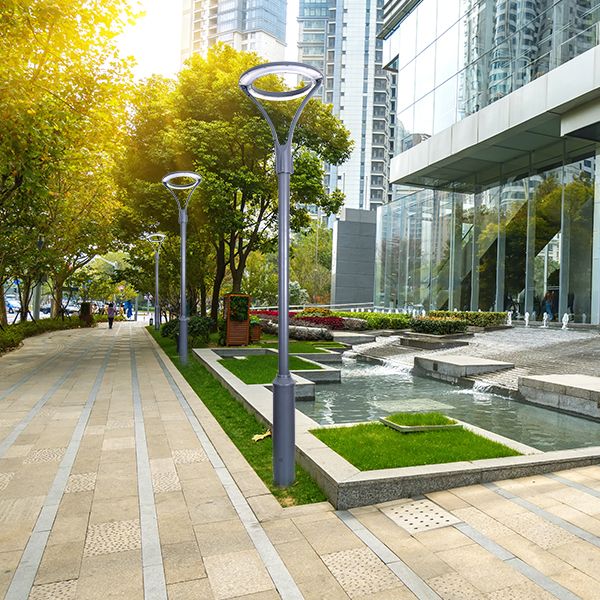

Day

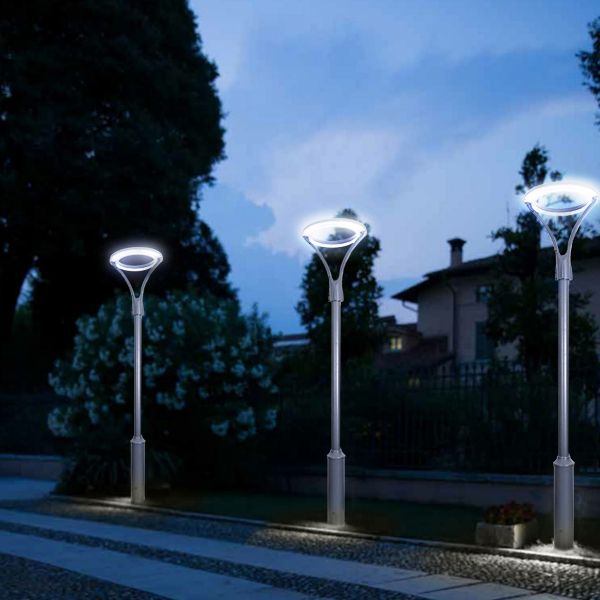

Night

● The lamp housing is use high-quality die-cast aluminum and the surface treatment with powder coating to anti-corrosion. With CE certified. Ensure that LED garden lights are suitable for outdoor use. Excellent thermal radiation, optical, and electrical capabilities.

● The material of the transparent cover is PC or PMMA, and More than 80% of the reflectors and a transparent cover with a light transmittance of over 90%. The lighting fixtures are IP66 waterproof and lightning proof, capable of withstanding various outdoor environments and weather conditions.

● The light source is an LED module, selected from high-quality LED chips, with a rated power of up to 30-60w. LED courtyard lights are efficient outdoor lighting, and more watts can be customized. LED light sources are placed at the top or bottom. The warranty can be 3 or 5 years.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. The top and the exterior of the lamp designed a heat dissipation device to ensure the service life of the light source. And this lamp is easy to install, fixed to the lamp pole with a small amount of bolts that are long enough

● The outdoor parking lot light not only using parking, but also using squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.

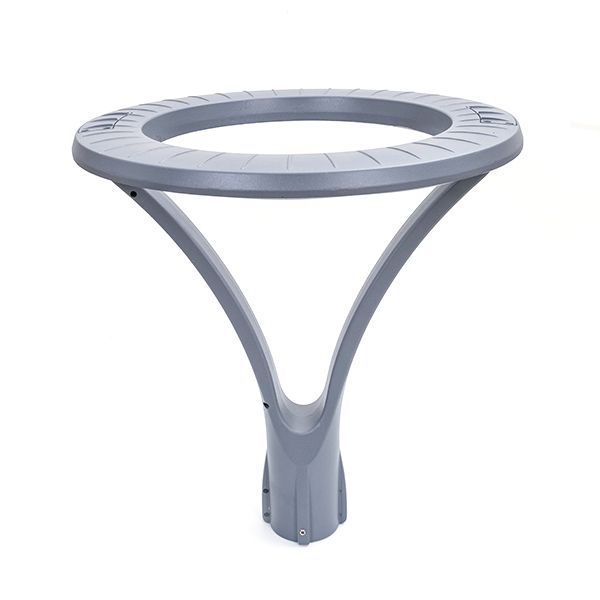

JHTY-8007B-3

Technical parameters

Product Parameters

Product Code

JHTY-8007B

Dimension

Φ510mm*H565mm

Housing Material

High pressure die-casting aluminum

Cover Material

PMMA or PC

Wattage

30W- 60W

Color temperature

2700-6500K

Luminous Flux

3300LM/3600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

50000 hours

Certificate

IP66  ISO9001

Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Packing

550*550*350MM/ 1 unit

Net weight(kgs)

4.1

Gross Weight(kgs)

4.6

Colors and Coating

In addition to these parameters, the JHTY-8007B Led Parking Lot Light for Parking is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
