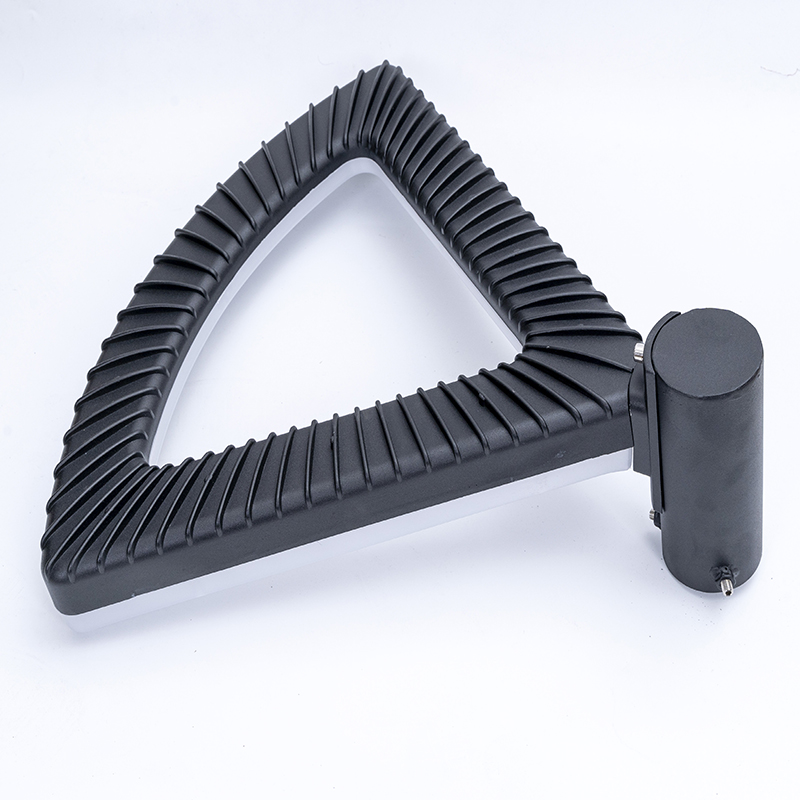

JHTY-8060 Professional waterproof outdoor LED courtyard light

Short Description:

The overall design of this lamp is triangular, small and exquisite, with a unique and concise design. Made of high-quality die-cast aluminum – A DC 12. Provide quality assurance for LED courtyard lights.

The light source is an LED module, which has the advantages of energy conservation, environmental protection, high efficiency, convenient installation, and a rated power of up to 30-60 watt. And more wattage requirements can be customized.Drive well-known brands such as MW and PHILIPS. The waterproof level has been professionally tested to reach IP65.

It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.


Product Detail

Product Tags

Product Description

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is a high-purity alumina, which can effectively prevent glare.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The material of the transparent cover is PMMA or PC, with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, and the injection molding process is used.

● The light source is an LED module, which has the advantages of energy conservation, environmental protection, high efficiency, and easy installation.

●  The rated power can reach 30-60 watts. And more wattage requirements can be customized

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● We have a strict quality control process and obtained the certificate of ISO9001-2015.We followed the principles of aesthetics, practicality, safety, and economy in product design.

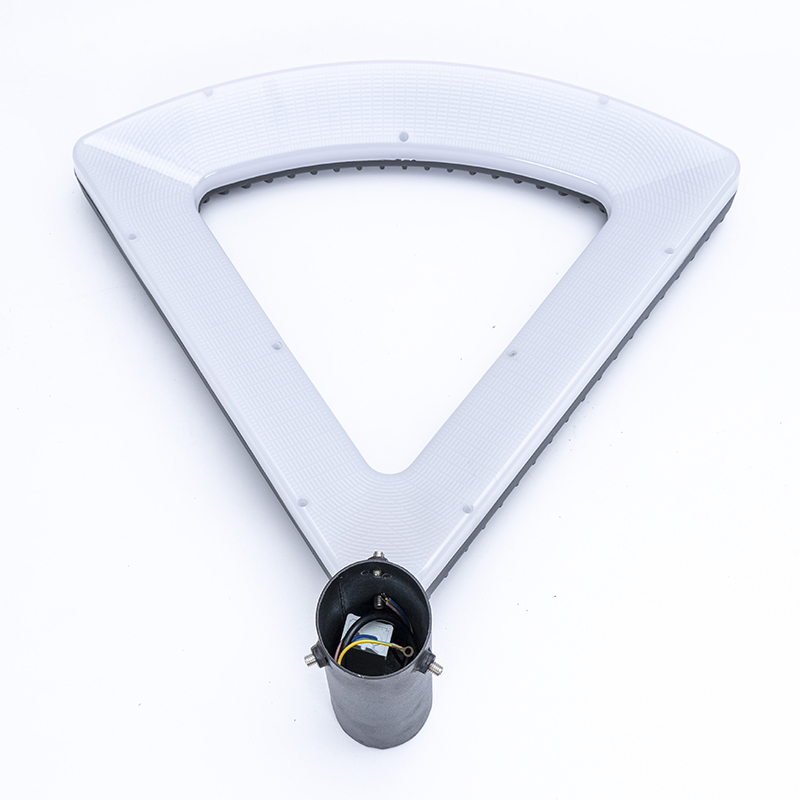

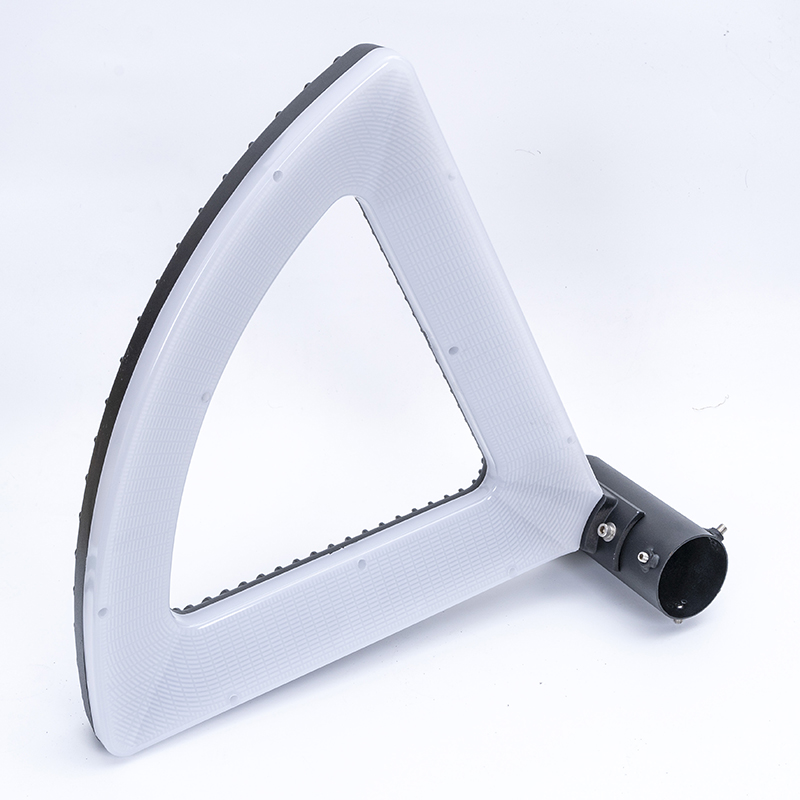

JHTY-8060 Professional waterproof outdoor LED courtyard light (2)

Technical parameters

Model

 JHTY-8060

Dimension

Side length 420MM

Fixture Material

High-quality die-cast aluminum - A DC 12 lamp body

Lamp Shade Material

 PMMA or PC

Rated Power

30W- 60W  or  Customized

Color temperature

2700-6500K

Luminous Flux

3300LM/6600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Ambient Temperature

 -40℃-60℃

Working Ambient humidity

10-90%

LED Life

>50000H

Protection Grade

IP65

Install Sleeve Diameter

Φ60

Applicable Lamp Pole

3-4m

Packing Size

430*430*350MM

Net weight(KGS)

3.25

Gross Weight(KGS)

3.75

Colors and Coating

In addition to these parameters, the JHTY-8060 LED Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

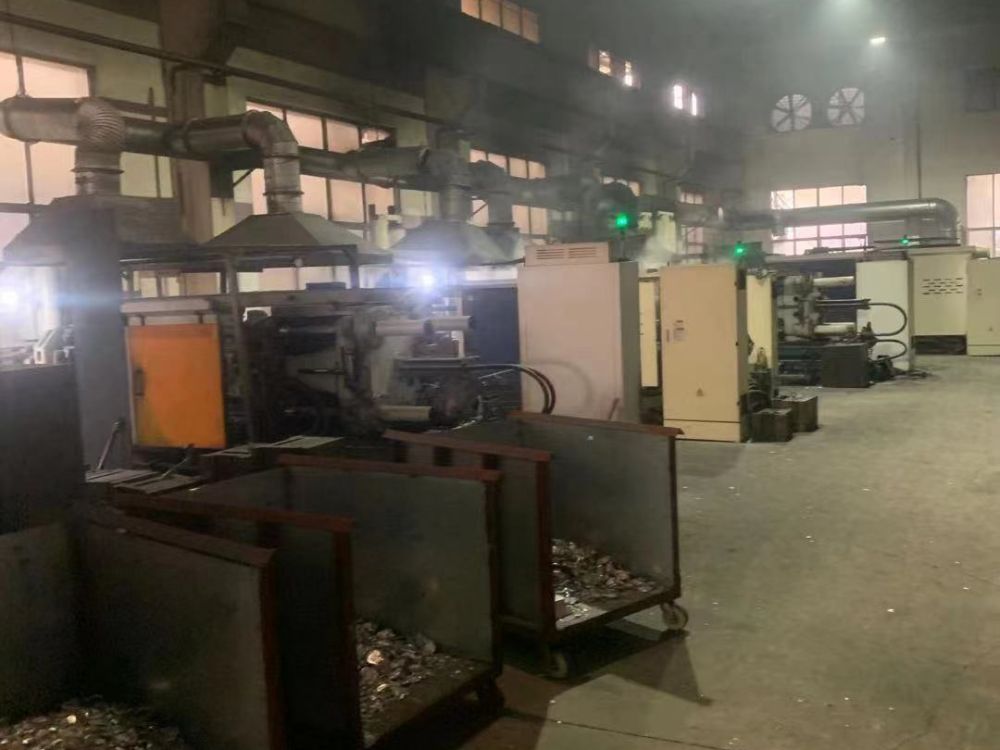

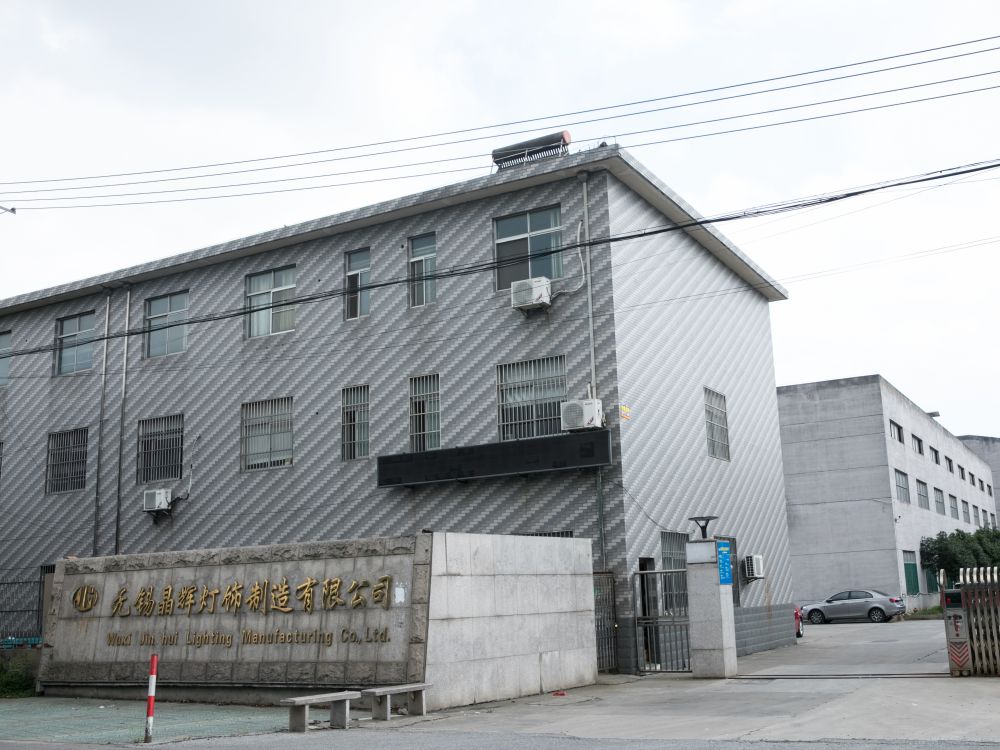

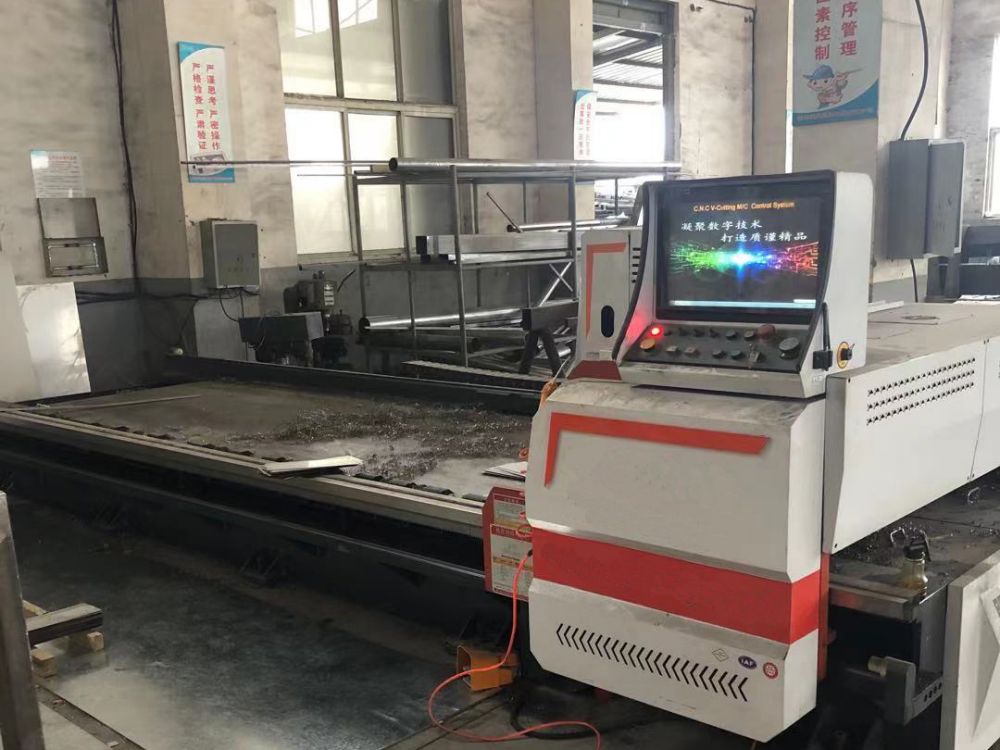

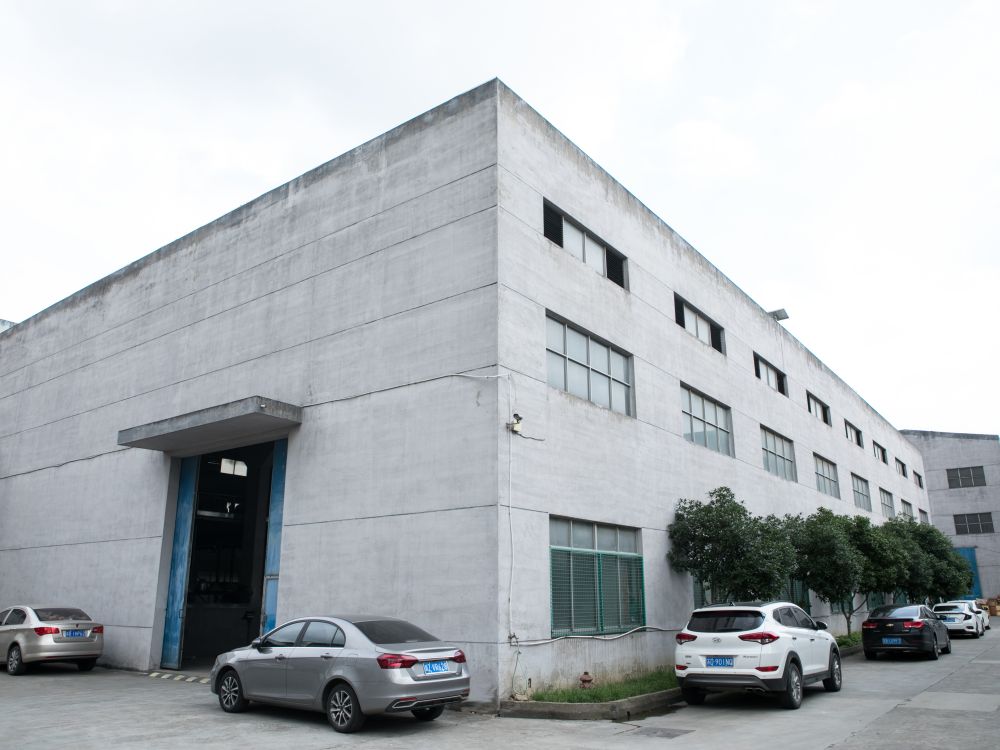

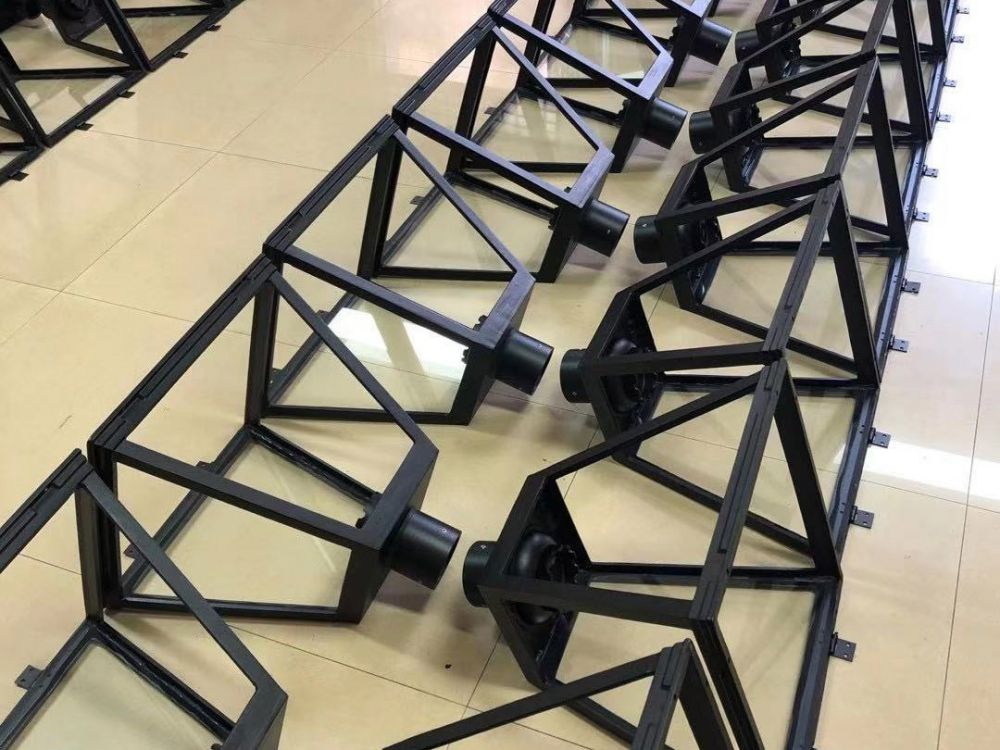

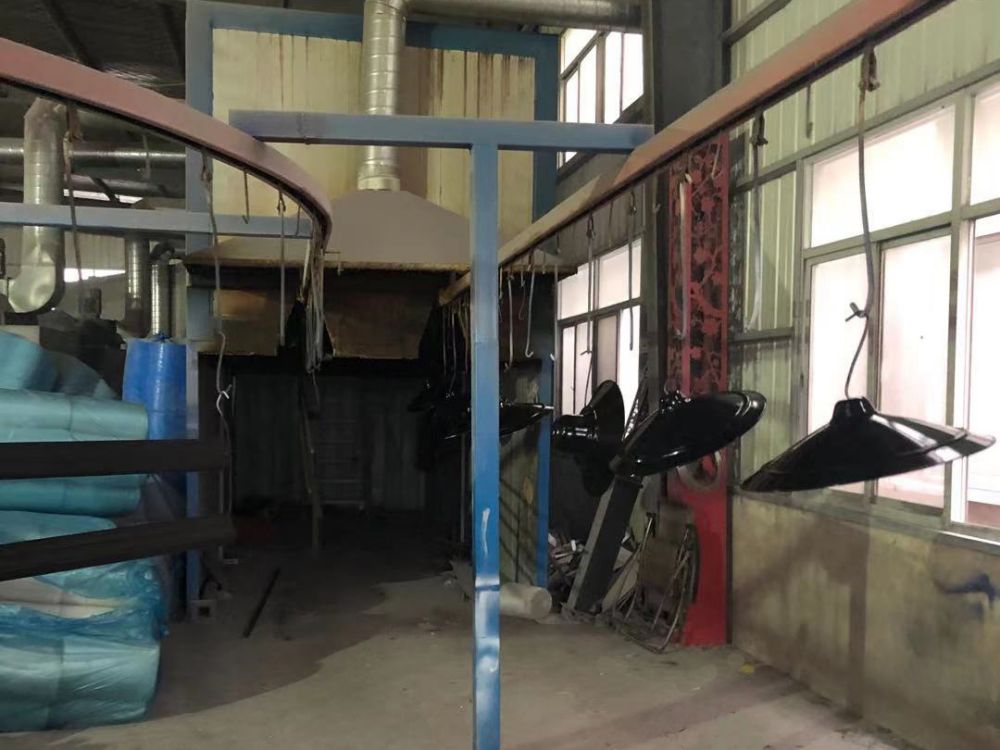

Factory Tour

Factory-Tour-231
Factory-Tour-161
Factory Tour (15)
Factory Tour (14)
Factory Tour (13)
Factory Tour (11)
