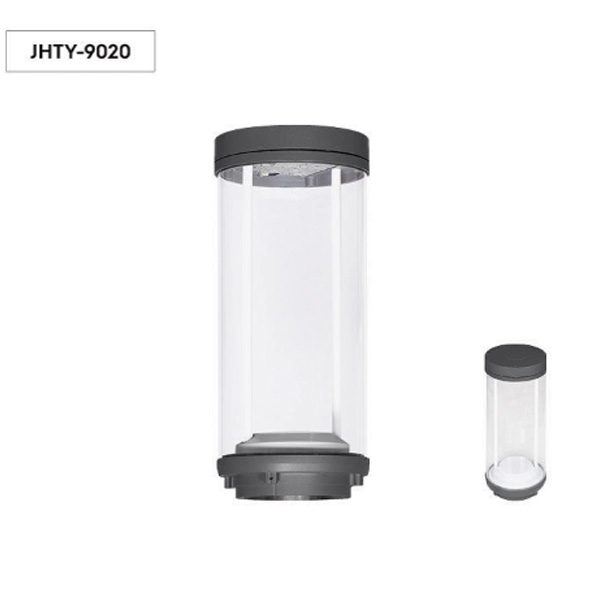

JHTY-9020 Outdoor and Garden Lighting for patio and Yard

Short Description:



This cylindrical large-area transparent lampshade courtyard light is carefully designed for people who like circular structures. A large area of translucent lampshade makes the lamp more artistic when lit at night and more decorative when not lit during the day. Many people like the design of this lamp because it can decorate them more beautifully when placed in beautiful parks or in their own courtyards.

This lamp uses a large area of UV resistant PC lampshade to make it look clear and beautiful, and is equipped with a die cast aluminum top cover and base to make it durable and have a long service life.


Product Detail

Product Tags

Product Description

Day

Night

●  The housing of lamp use the die cast aluminum and the surface of the lamp was polished and pure polyester electrostatic spraying can effectively prevent corrosion



● The material of the transparent cover is PMMA, with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, and the injection molding process is used. The entire lamp adopts stainless steel fasteners, which are not easy to corrode.





● The light source is an LED module with a rated power of up to 30-60 watts, more watts can be customized. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Internationally brand drivers available for selection. Having excellent thermal radiation, optical, and electrical capabilities

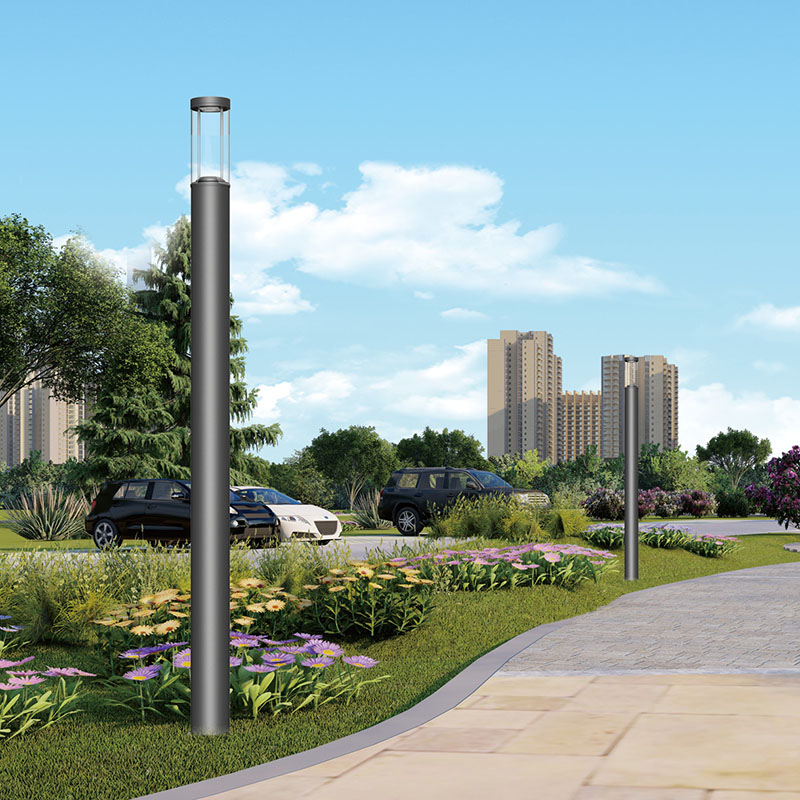

 It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.





P1

Technical parameters

Product Parameters

Product Code

JHTY-9020

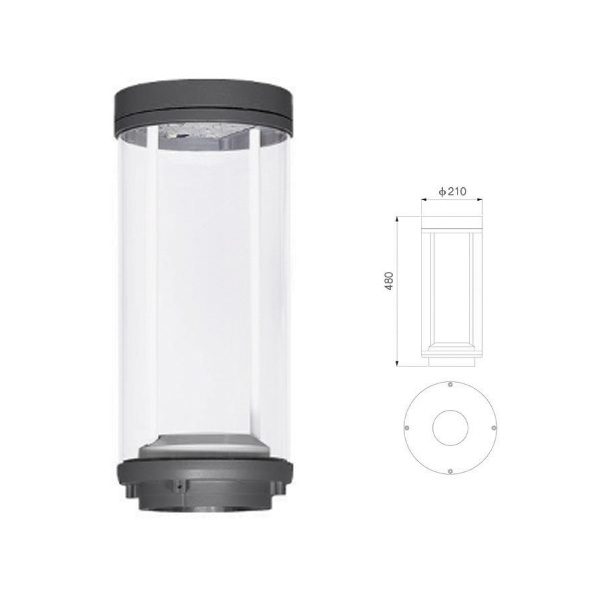

Dimension

Φ210mm*H480mm

Housing Material

High pressure die-casting aluminum

Cover Material

PMMA

Wattage

30W- 60

Color temperature

2700-6500K

Luminous Flux

3300LM/6600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

50000 hours

Certification

IP65 ROHS CE ISO

Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Net weight(kgs)

3.7

Gross Weight(kgs)

4.2





Colors and Coating

In addition to these parameters, the JHTY-9020 Outdoor and Garden Lighting for back yard is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

ROHS
CE
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

Factory Tour

工厂外景 P1
厂区1_20240811104300
厂区2_20240811104315
设备 _20240811104207
车间2 800
装柜_20240811104250
