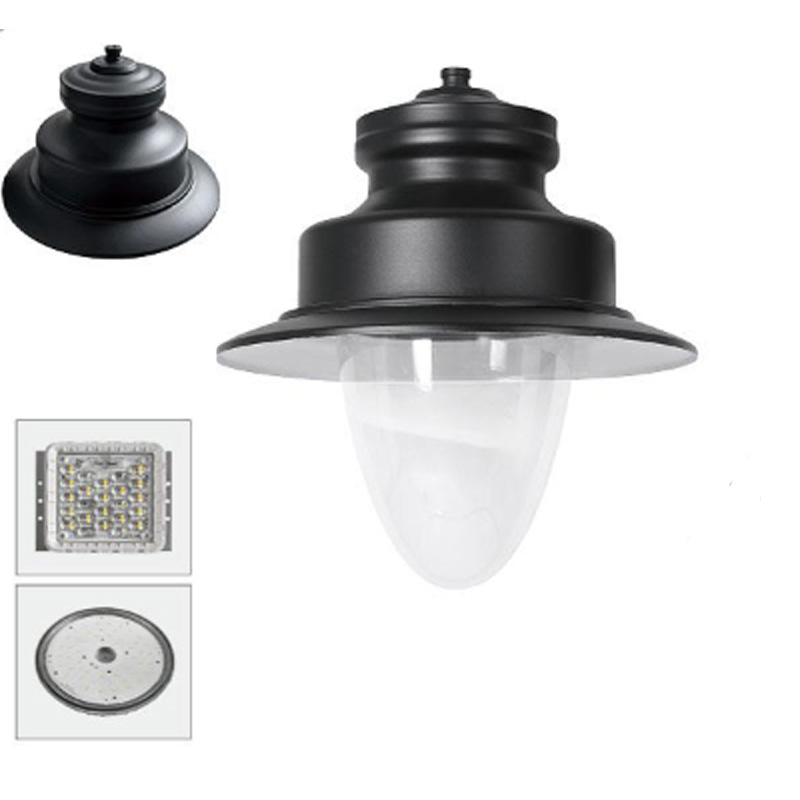

JHTY-9022 30W to 60W Outdoor Path Lights

Short Description:

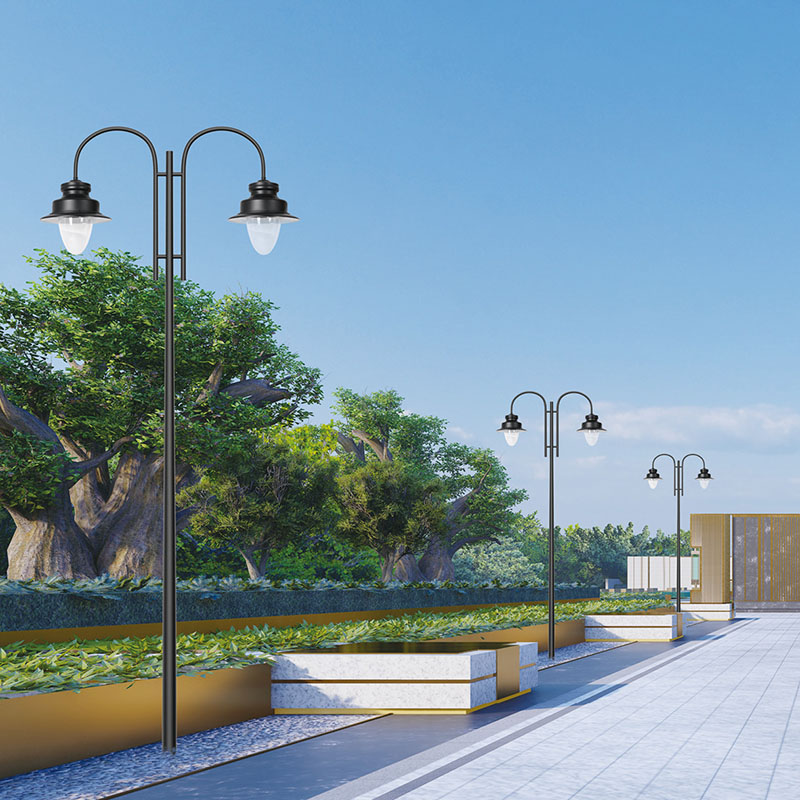

This style lights are really suitable for path, and like the sister style with JHTY-9021. It’s exquisite and decoration, making outdoor places especially for parks, yards, gardens, parking lots, and urban pedestrian paths more beautiful. It’s small but also matched the qualified LED light, chips and driver. The light source has excellent thermal radiation, optical, and electrical capabilities. It can be equipped with internationally renowned brand drivers, with LED modules as the light source and high-quality Philips LED chips selected.

Send email to us

Product Detail

Product Tags

Product Description

Day

Night

● The housing made of high pressure die-cast aluminum, with an excellent thermal radiation, optical and electrical capabilities.

● The transparent cover material is PC or PMMA. The surface also to do powder coating and the color can make according to customer’s request.

● This light matched a heat dissipation device at top and the exterior of the lamp to ensure the service life of the light source. The fasteners of lamp adopts stainless steel material which are not easy to corrode.

● We have a professional quality control team in the production process to conduct strict quality inspections on each processing process against the relevant standards of each process, and control the production process to ensure that the quality of each set of lights meets the requirements.

Technical parameters

Product Parameters
Product Code	JHTY-9022
Dimension	Φ580mm*H640mm
Housing Material	high pressure die-cast aluminum
Cover Material	PC
Wattage	30W- 60W
Color temperature	2700-6500K
Luminous Flux	3300LM/3600LM
Input Voltage	AC85-265V
Frequency range	50/60HZ
Power factor	PF> 0.9
Color Rendering Index	> 70
Working Temperature	-40℃-60℃
Working humidity	10-90%
Life Time	50000 hours
Certificate	ROHS CE IP65 ISO9001
Installation Spigot Size	60mm 76mm
Applicable Height	3m -4m
Packing	590590650MM/ 1 unit
Net weight(kgs)	4.5
Gross Weight(kgs)	5.0

Colors and Coating

In addition to these parameters, the JHTY-9022 Outdoor path lights is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
