JHTY-9016 Low Voltage Led Light for Yard for Courtyard and Park

Short Description:

This Led light for Yard is the new product launched by the company in the past two years. The appearance is a modern and minimalist courtyard light and it is specifically designed for export to the European and American markets, with a beautiful appearance and competitive price, making it deeply loved by customers.

 The light with its sturdy construction, the Courtyard Lamp can withstand extreme weather conditions, making it a perfect addition to your outdoor space. The lamp is also easy to install, making it a hassle-free solution to light up your patio or garden.


Product Detail

Product Tags

Product Description

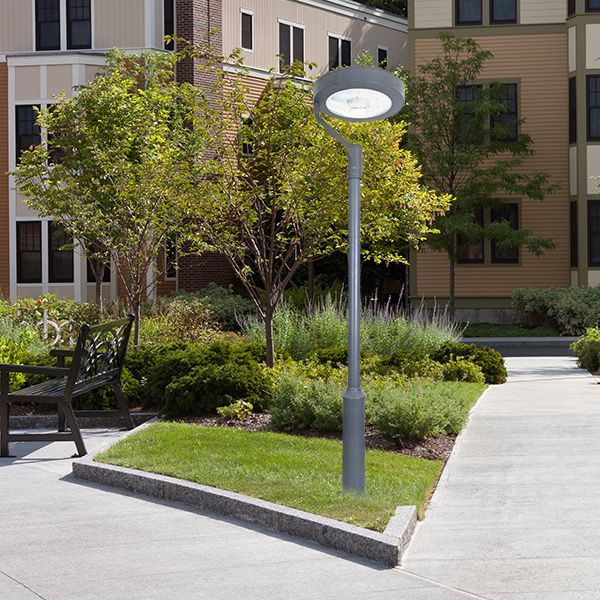

Day

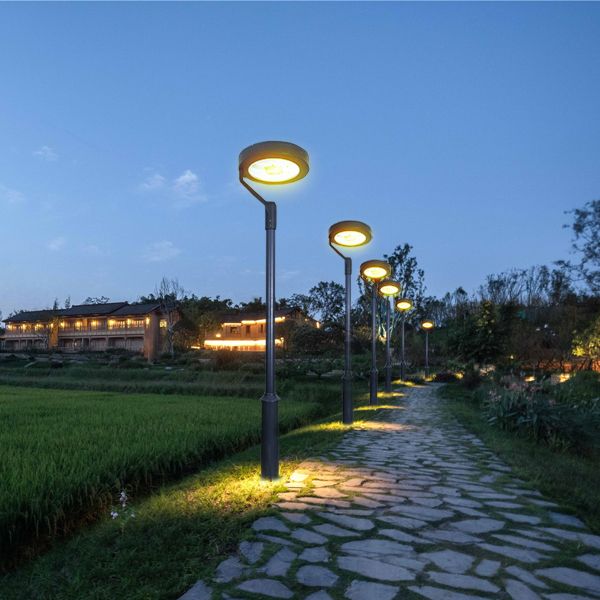

Night

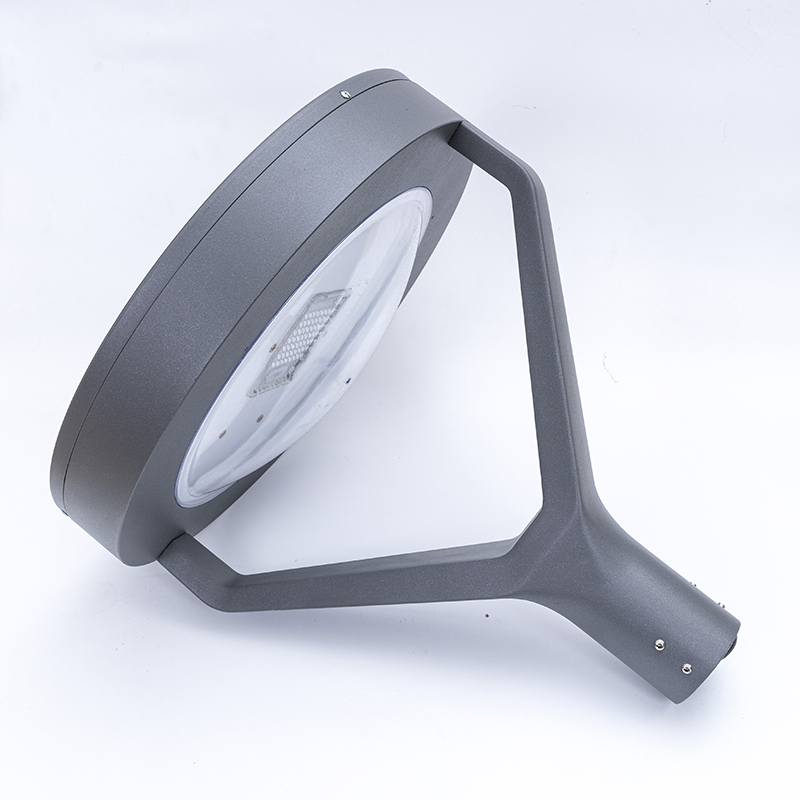

● The material of this product is aluminum and the process is aluminum die-casting with powder coated surface. The internal reflector is made by high-purity aluminum alumina oxide to anti  glare.

●  The material of the clear cover is PMMA or PC with milky white or transparent color and good light conductivity and no glare due to light diffusion. The clear cover use injection molding process.

 The light source can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.Using well-known chips, with a warranty of up to three years. And an LED module with a rated power of up to 30-60 watts.



● On the top the lamp designed a a heat dissipation device dissipate heat and ensure the service life of the light source. The fasteners of lamp used stainless steel material to anti-rust.

●  The box has built-in anti-collision pearl cotton, which effectively plays the role of buffer and anti-collision, and is clean and environmentally friendly and reusable, saving customers' packaging costs.



2

Technical parameters

Technical parameters:

Model:

JHTY-9016

Dimension:

500*H515MM

Fixture Material:

High pressure die-casting aluminum lamp body

Lamp Shade Material:

 PMMA or PC

Rated Power:

30W- 60W  or Customized

Color temperature:

2700-6500K

Luminous Flux:

3600LM/7200LM

Input  Voltage:

AC85-265V

Frequency range:

50/60HZ

Power factor:

PF> 0.9

Color Rendering Index:

> 70

Working Ambient Temperature:

 -40℃-60℃

Working Ambient humidity:

10-90%

LED Life:

>50000H

Protection Grade:

IP65

Install Sleeve Diameter:

Φ60   Φ76mm

Applicable Lamp Pole:

3-4m

Packing Size:

510*510*350MM

Net weight(KGS):

8.6

Gross Weight(KGS):

9.1





Colors and Coating

In addition to these parameters, the JHTY-9016 Led Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

Factory Tour

Factory Tour (24)
Factory Tour (26)
Factory Tour (19)
Factory Tour (15)
Factory Tour (3)
Factory Tour (22)
