JHTY-9016 Outdoor LED Low Voltage Garden Light for Courtyard and Park

Short Description:

This LED courtyard light is a modern and minimalist courtyard light, a new product launched by the company in the past two years. This product is specifically designed for export to the European and American markets, with a beautiful appearance and competitive price, making it deeply loved by customers.

We have a strict quality control process and obtained the certificate of ISO9001-2015.

We will follow the principles of aesthetics, practicality, safety, and economy in product design.

It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.


Product Detail

Product Tags

Product Description

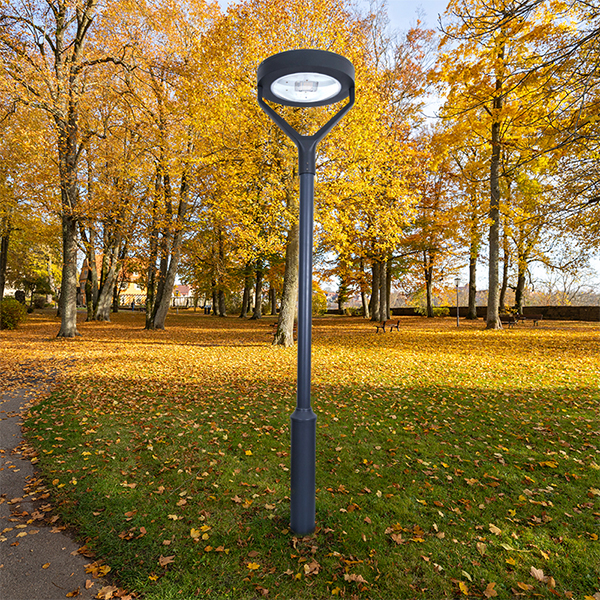

Day

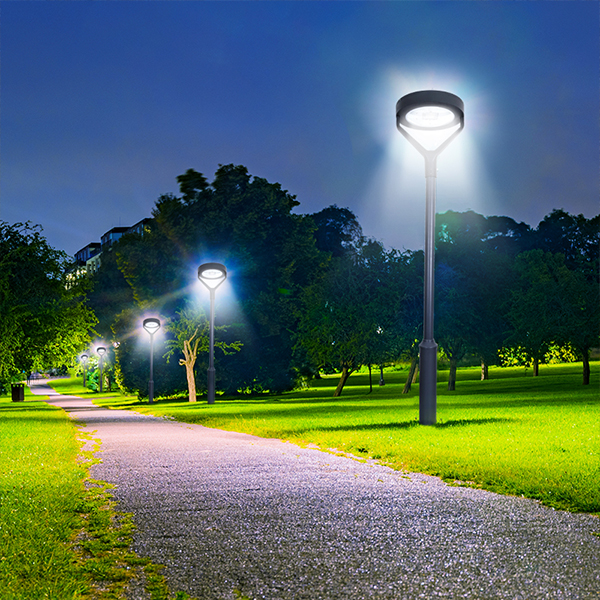

Night

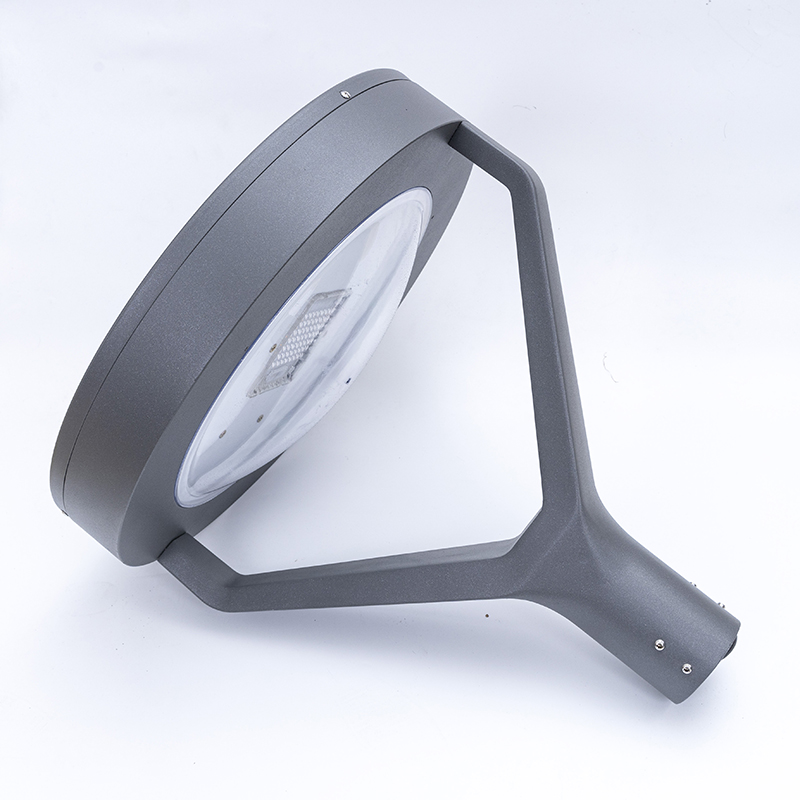

●  The lamp shell use die-casting aluminum housing with the powder coated surface .The high-purity aluminum alumina oxide internal reflector to prevent glare.

 The color of milky white or transparent and injection molding process clear cover made by PMMA or PC with good light conductivity and no glare due to light diffusion.



● The rated power of up to 30-60 watts of light source, which can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.Using well-known chips, with a warranty of up to three years.

All the fasteners used stainless steel material to prevent rust.  There is a heat dissipation device on the top of the lamp to dissipate heat and ensure the service life of the light source.

 The box has built-in anti-collision pearl cotton, which effectively plays the role of buffer and anti-collision, and is clean and environmentally friendly and reusable, saving customers' packaging costs.

park lamp

Technical parameters

Technical Details:

Model No.:

JHTY-9016

Dimension(mm):

500*H515MM

Housing Material:

High pressure die-casting aluminum lamp body

Cover Material:

 PMMA or PC

Rated Power(w):

30W- 60W  or Customized

Color temperature(k):

2700-6500K

Luminous Flux(lm):

3600LM/7200LM

Input  Voltage(v):

AC85-265V

Frequency range(HZ):

50/60HZ

Factor of Power:

PF> 0.9

Rendering Index of Color:

> 70

Ambient Temperature of Working:

 -40℃-60℃

Ambient humidity of Working:

10-90%

LED Life(H):

>50000H

Waterproof Grade:

IP65

Install Diameter:

Φ60   Φ76mm

Applicable for Pole(m):

3-4m

Packing Size(mm):

510*510*350MM

N.W.(KGS):

8.6

G.W.(KGS):

9.1





Colors and Coating

In addition to these parameters, the JHTY-9016 Led Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
