JHTY-9016 Outdoor LED Low Voltage Garden Light for Courtyard and Park

Short Description:

This LED courtyard light is a modern and minimalist courtyard light, a new product launched by the company in the past two years. This product is specifically designed for export to the European and American markets, with a beautiful appearance and competitive price, making it deeply loved by customers.

We have a strict quality control process and obtained the certificate of ISO9001-2015.

We will follow the principles of aesthetics, practicality, safety, and economy in product design.

It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.


Product Detail

Product Tags

Product Description

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is made of high-purity aluminum alumina, which can effectively prevent glare.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The material of the transparent cover is PMMA or PC, with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, It is generally recommended to use transparency. And the injection molding process is used.

● The light source is an LED module with a rated power of up to 30-60 watts. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.Using well-known chips, with a warranty of up to three years.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● Each lamp is covered with dust bags, and the outer packaging is 5 layers of thickened ridge paper, which plays a role in moisture-proof, shock-proof and reinforced.

● The box has built-in anti-collision pearl cotton, which effectively plays the role of buffer and anti-collision, and is clean and environmentally friendly and reusable, saving customers' packaging costs.

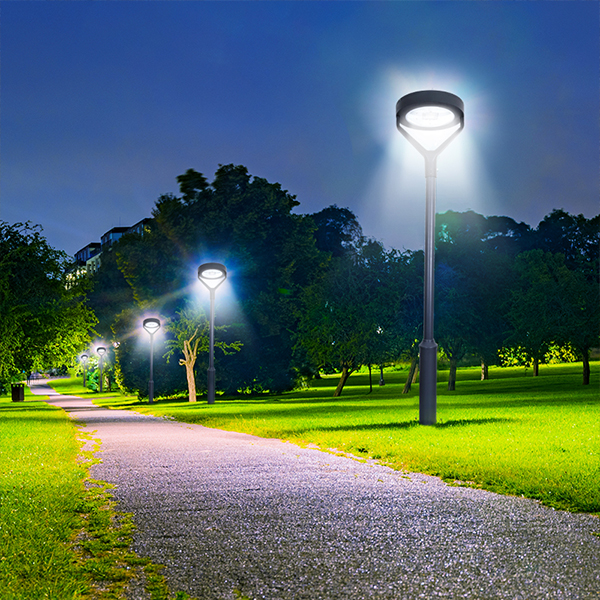

Night

Technical parameters

Model

JHTY-9016

Dimension

500*H515MM

Fixture Material

High pressure die-casting aluminum lamp body

Lamp Shade Material

 PMMA or PC

Rated Power

30W- 60W  or Customized

Color temperature

2700-6500K

Luminous Flux

3600LM/7200LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Ambient Temperature

 -40℃-60℃

Working Ambient humidity

10-90%

LED Life

>50000H

Protection Grade

IP65

Install Sleeve Diameter

Φ60   Φ76mm

Applicable Lamp Pole

3-4m

Packing Size

510*510*350MM

Net weight(KGS)

8.6

Gross Weight(KGS)

9.1

Colors and Coating

In addition to these parameters, the JHTY-9016 LED Outdoor Garden Lights is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

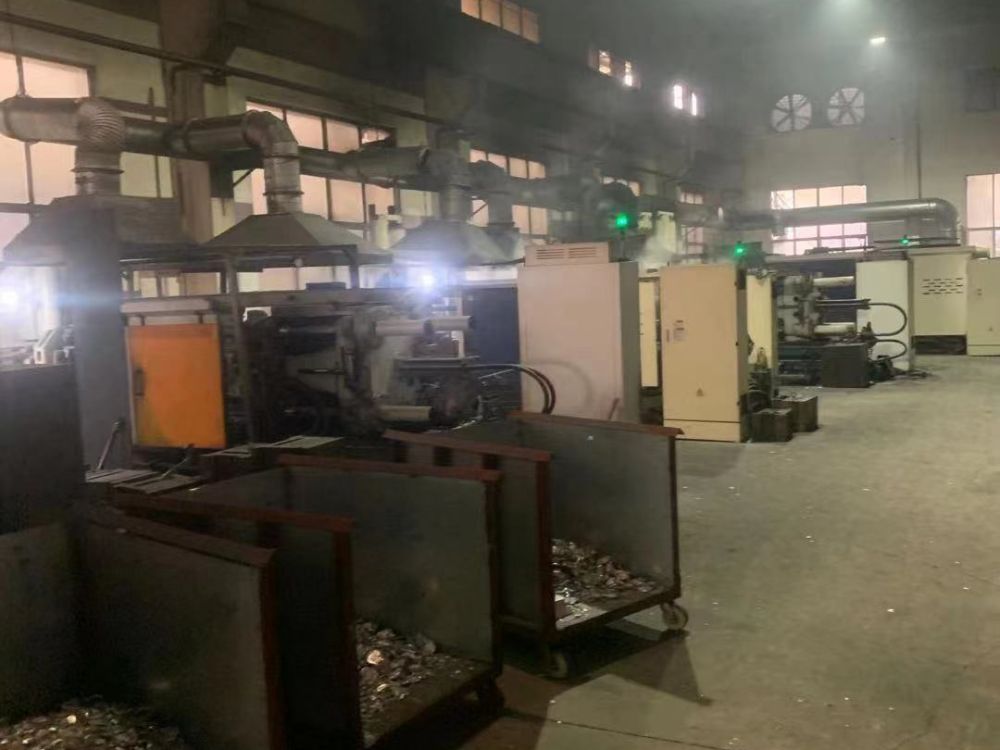

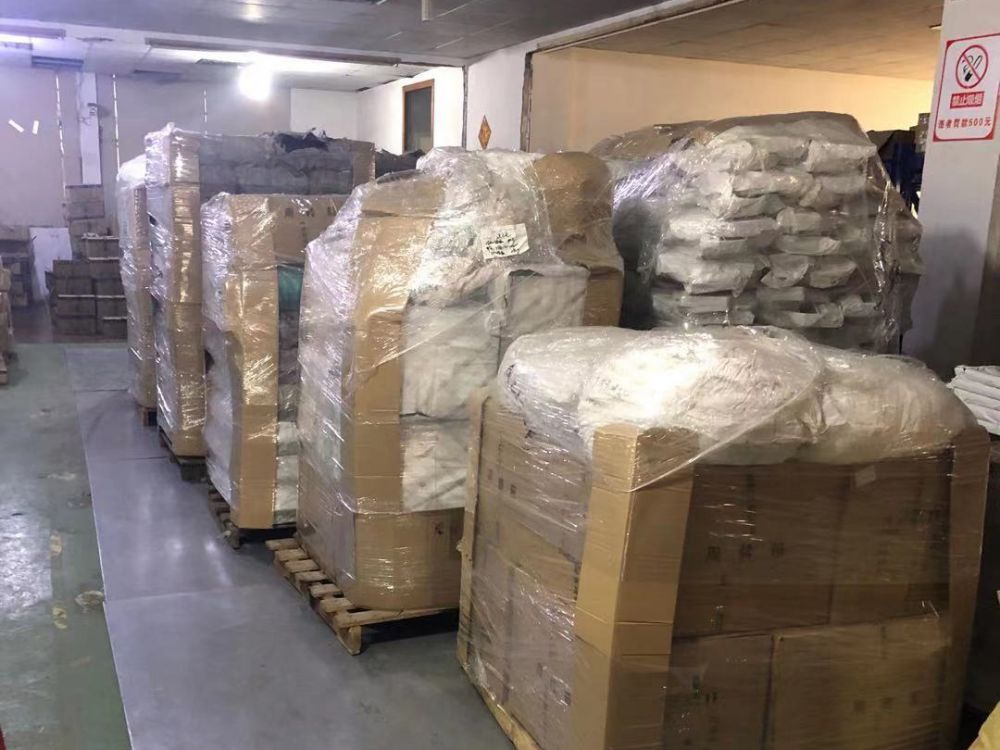

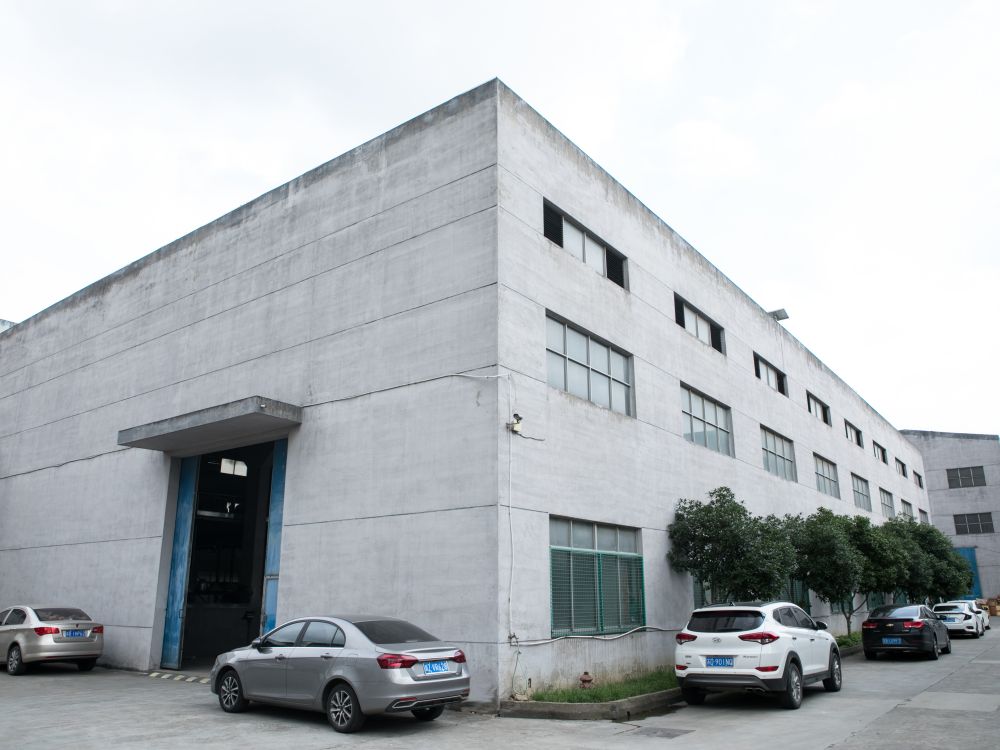

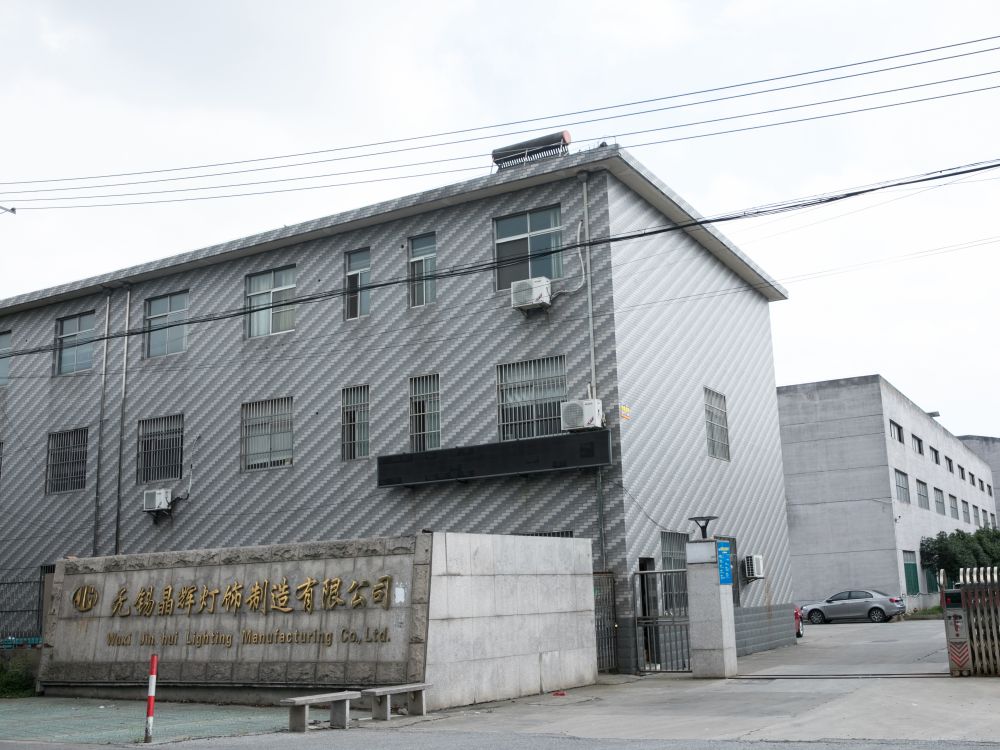

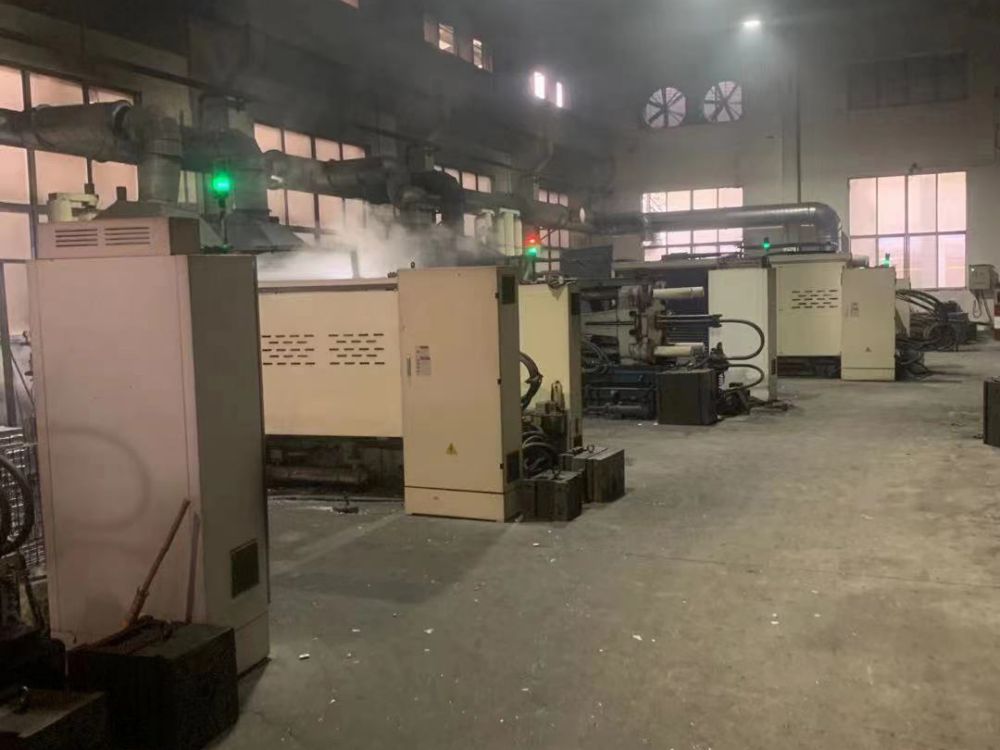

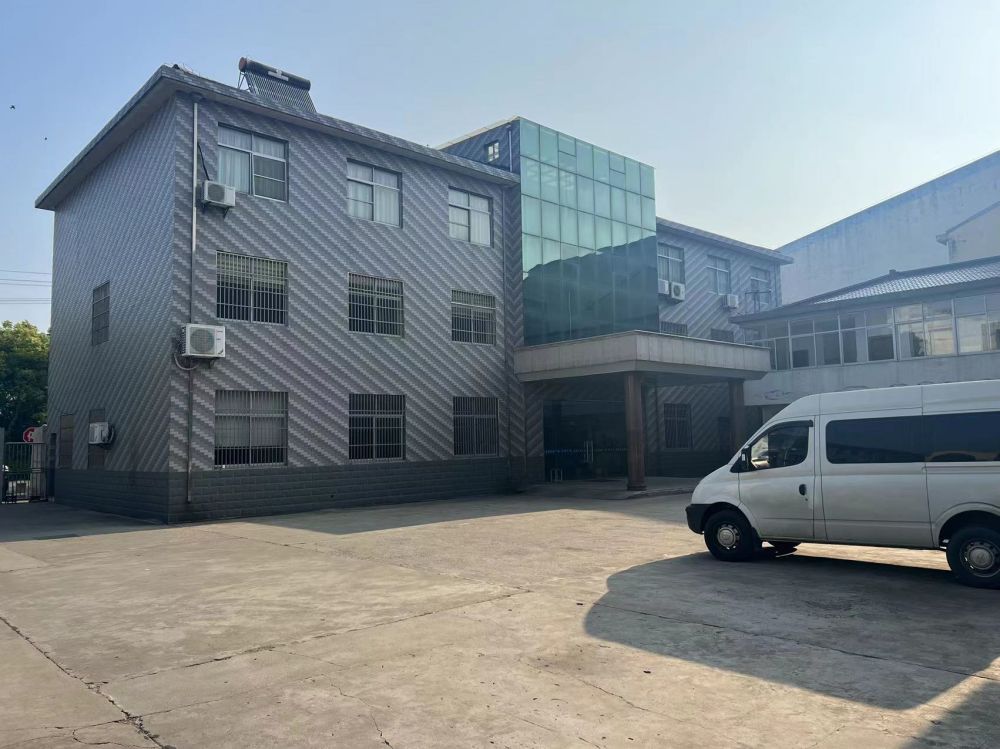

Factory Tour

Factory-Tour-231
Factory-Tour-161
Factory Tour (24)
Factory Tour (18)
Factory Tour (15)
Factory Tour (22)
