JHTY-9025 30W Low Voltage LED Courtyard Light lights for Courtyard

Short Description:

This LED courtyard light adopts a triangular design and is a modern and minimalist courtyard lamp equipped with three pillars, making it more unique in design. The top cover has a waterproof design, which is not easy to accumulate water.The lamp housing material is aluminum die-casting. The light source is an LED module with a rated power of up to 30-60 watts. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Using Chinese branded drivers and chips, with a warranty of up to 3 years. This lamp can be divided into detachable, saving packaging and transportation costs.

Send email to us

Product Detail

Product Tags

Product Description

Day

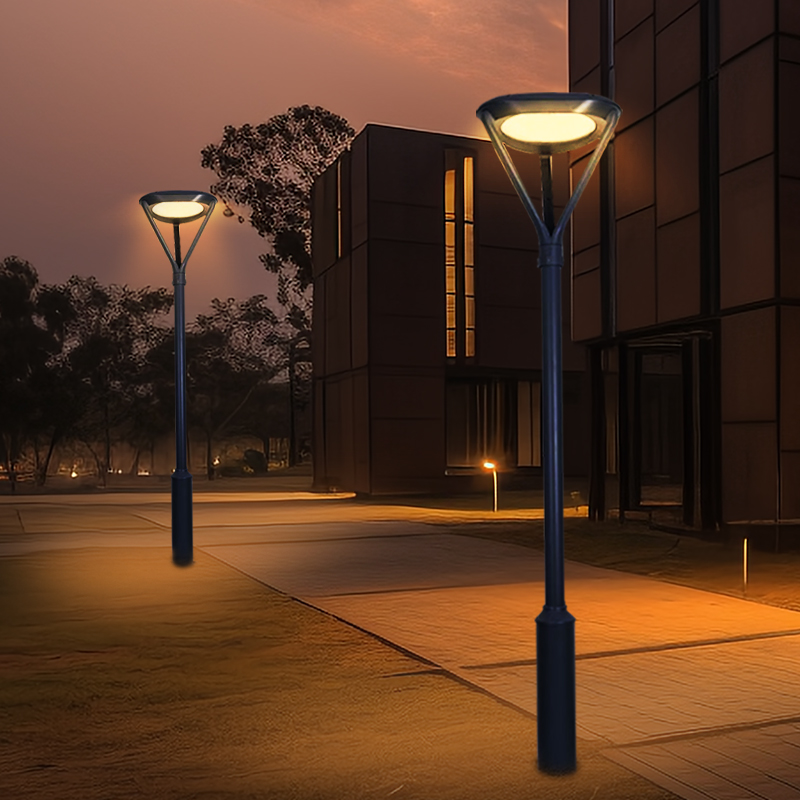

Night

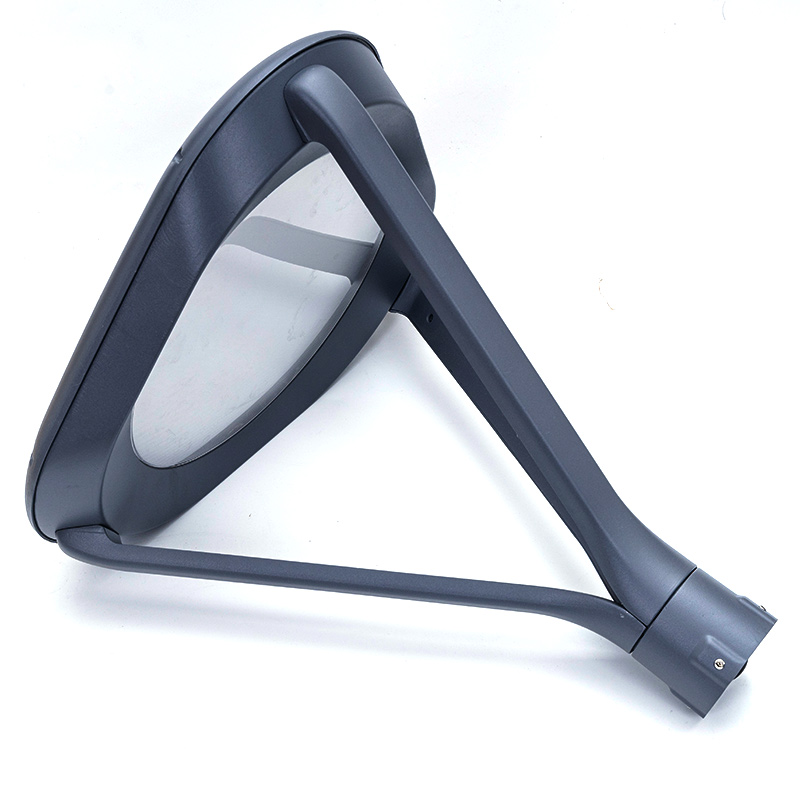

● The material of this product is aluminum and the process is aluminum die-casting with powder coated surface. The internal reflector is made by high-purity aluminum alumina oxide to anti glare.

● The material of transparent cover is 4-5mm high-temperature tempered glass, with a matting surface, with good light conductivity without glare due to light diffusion.

● To use an LED module light source with advantages of which has the advantages of energy saving , eco-friendly , high efficiency, and easy installation.

It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. The rated power can reach 30-60 watts.

● On the top the lamp designed a a heat dissipation device dissipate heat and ensure the service life of the light source. The fasteners of lamp used stainless steel material to anti-rust.

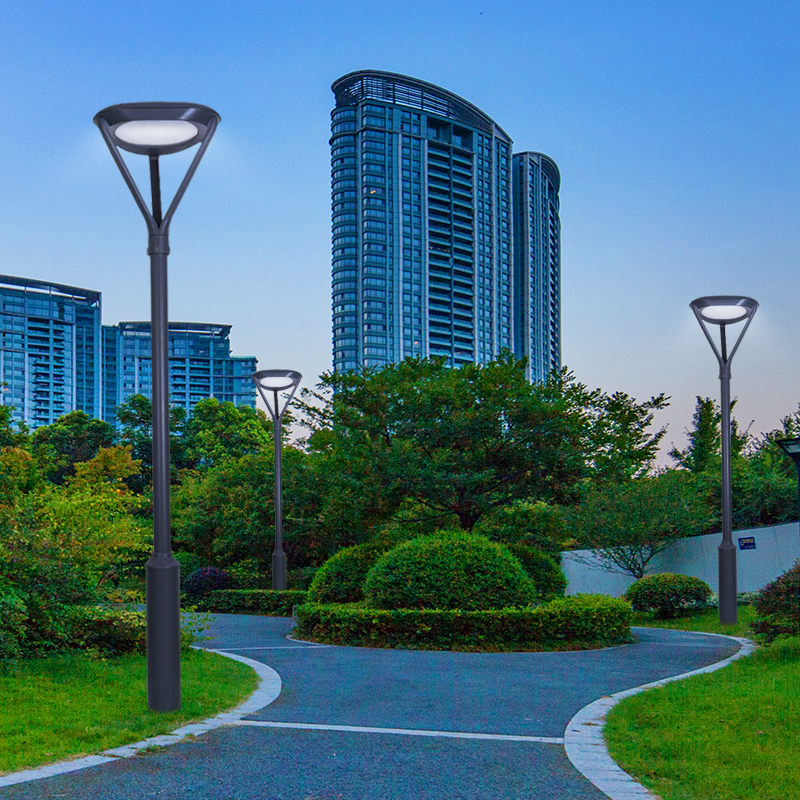

● The Courtyard Light widely use many outdoor places like squares, residential areas, parks, streets, gardens, parking lots, city walkways.

Technical parameters

Technical parameters:
Model:	JHTY-9025
Dimension(mm):	490470H540
Fixture Material:	High pressure die-casting aluminum lamp body
Lamp Shade Material:	4-5mm high-temperature tempered glass
Rated Power:	30W- 60W or Customized
Color temperature:	2700-6500K
Luminous Flux:	3300LM/6600LM
Input Voltage:	AC85-265V
Frequency range:	50/60HZ
Power factor:	PF> 0.9
Color Rendering Index:	> 70
Working Ambient Temperature:	-40℃-60℃
Working Ambient humidity:	10-90%
LED Life:	>30000H
Protection Grade:	IP65
Install Sleeve Diameter:	Φ60 Φ76mm
Applicable Lamp Pole:	3-4m
Packing Size:	510510350MM
Net weight(KGS):	5.5
Gross Weight(KGS):	6.0

Colors and Coating

In addition to these parameters, the JHTY-9025 Yard Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
