JHTY-9025 Low Voltage LED Garden lights for Courtyard

Short Description:

This LED courtyard light adopts a triangular design and is a modern and minimalist courtyard lamp equipped with three pillars, making it more unique in design. The top cover has a waterproof design, which is not easy to accumulate water.The lamp housing material is aluminum die-casting. The light source is an LED module with a rated power of up to 30-60 watts. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Using Chinese branded drivers and chips, with a warranty of up to 3 years. This lamp can be divided into detachable, saving packaging and transportation costs.

Send email to us

Product Detail

Product Tags

Product Description

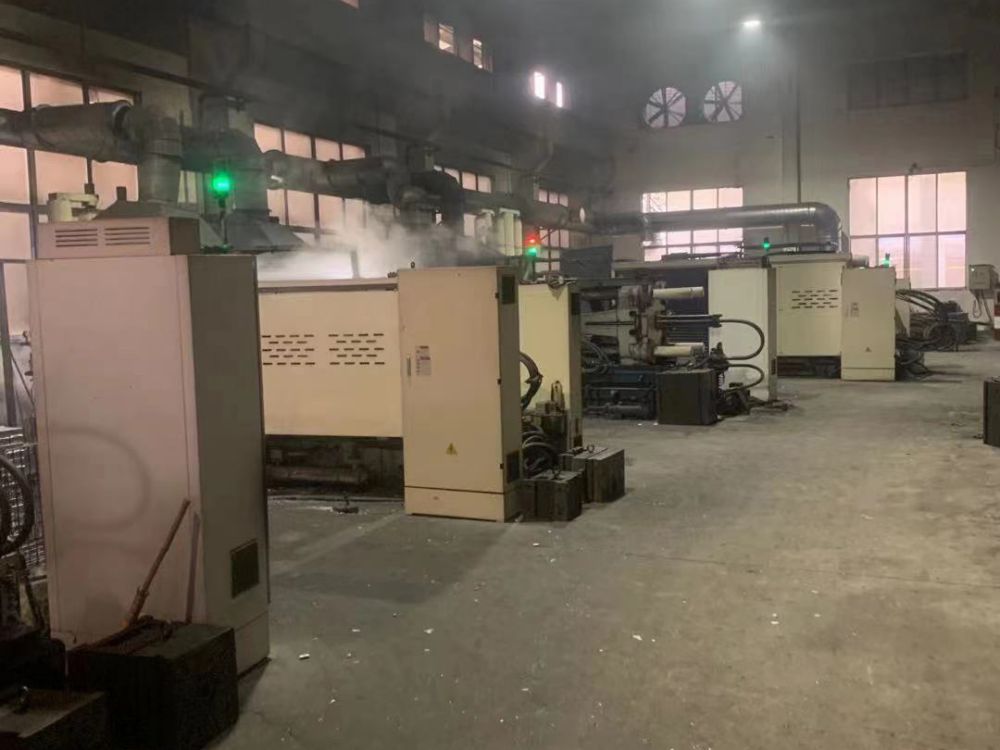

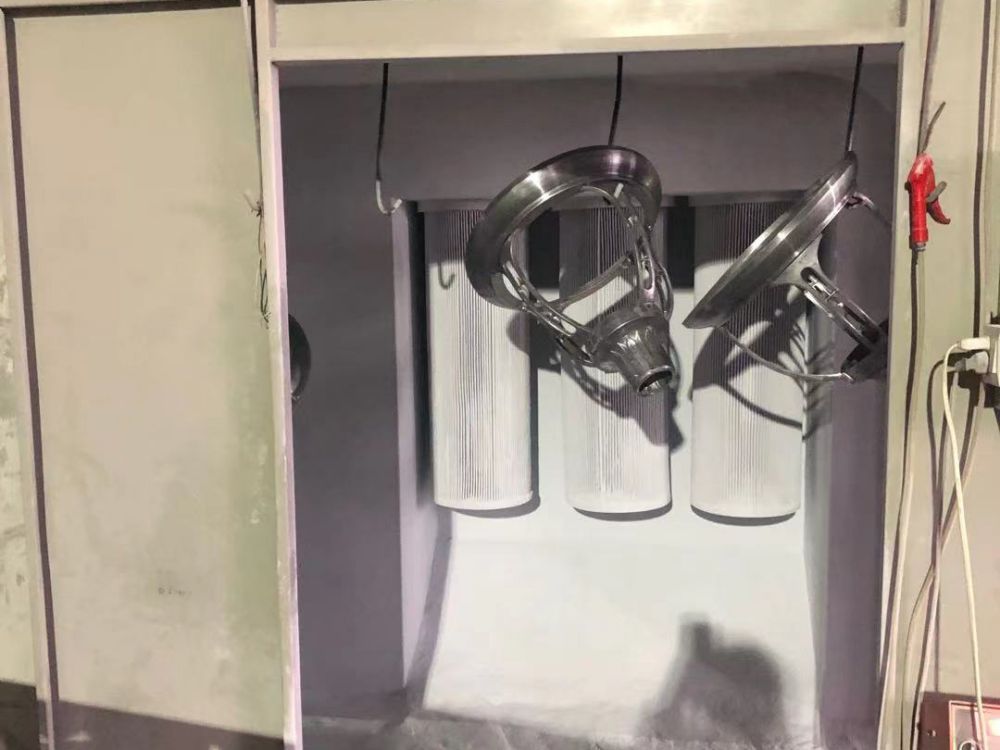

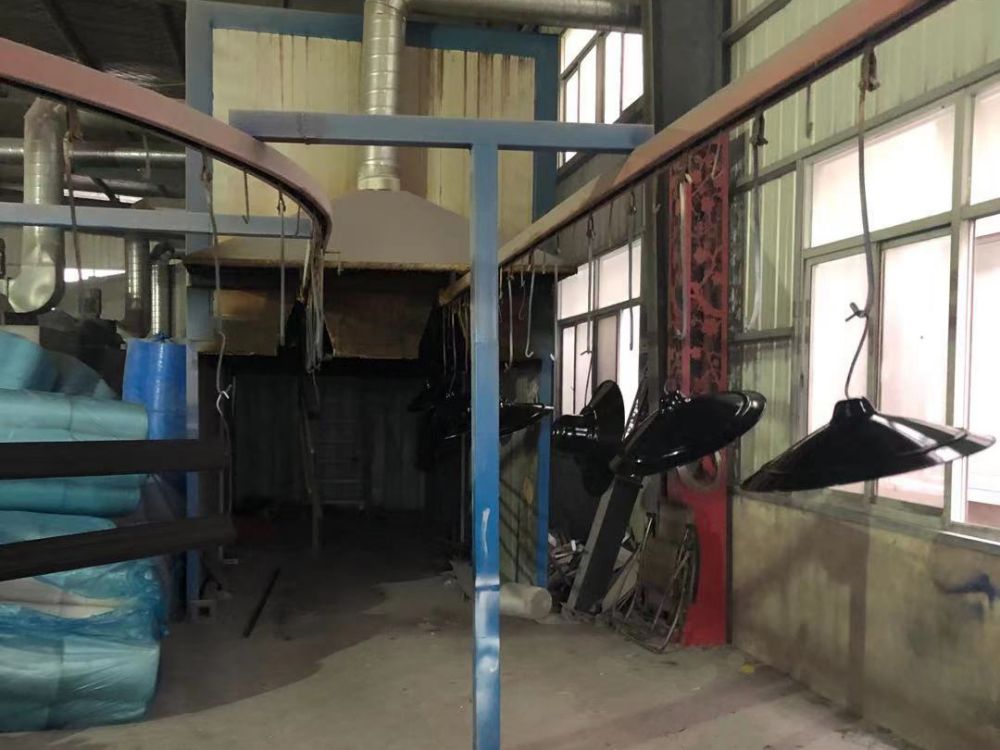

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is a high-purity alumina, which can effectively prevent glare.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The transparent cover is 4-5mm high-temperature tempered glass, with a matting surface, good light conductivity, and no glare due to light diffusion.

● The light source is an LED module, which has the advantages of energy saving , environmental protection, high efficiency, and easy installation.

● The rated power can reach 30-60 watts.It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source. Waterproof grade can reach IP65 after professional testing.

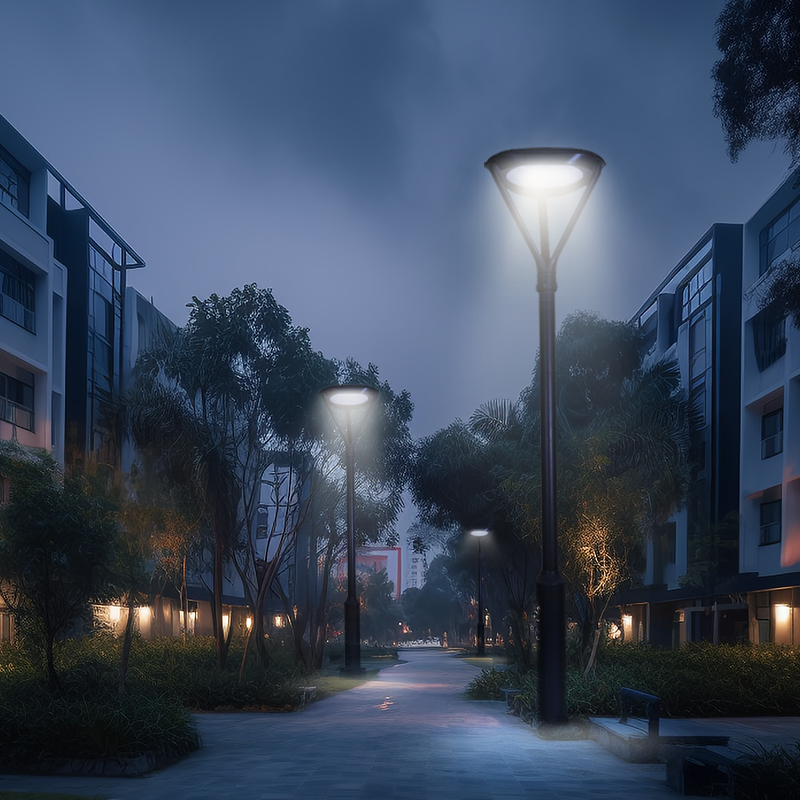

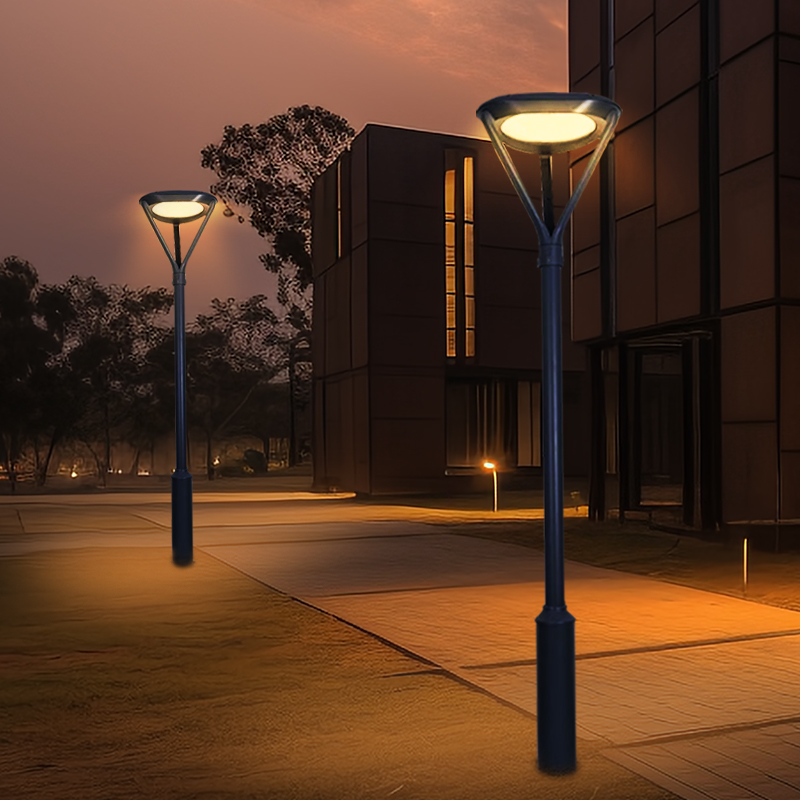

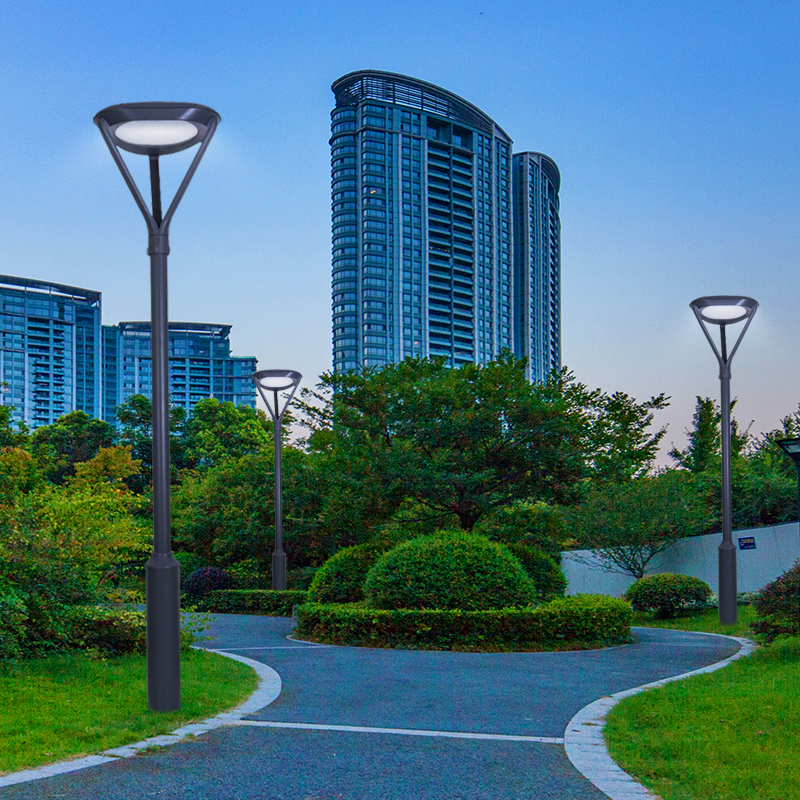

● It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.

Technical parameters

Model	JHTY-9025
Dimension(mm)	490470H540
Fixture Material	High pressure die-casting aluminum lamp body
Lamp Shade Material	4-5mm high-temperature tempered glass
Rated Power	30W- 60W or Customized
Color temperature	2700-6500K
Luminous Flux	3300LM/6600LM
Input Voltage	AC85-265V
Frequency range	50/60HZ
Power factor	PF> 0.9
Color Rendering Index	> 70
Working Ambient Temperature	-40℃-60℃
Working Ambient humidity	10-90%
LED Life	>30000H
Protection Grade	IP65
Install Sleeve Diameter	Φ60 Φ76mm
Applicable Lamp Pole	3-4m
Packing Size	510510350MM
Net weight(KGS)	5.5
Gross Weight(KGS)	6.0

Colors and Coating

In addition to these parameters, the JHTY-9025 LED Courtyard Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
