TYDT-00312 Customize Garden Lighting According to Customer’s Ideas

Short Description:

This courtyard lamp also has a modern atmosphere and is deeply loved by users. We have also applied for our own brand patent CAPABLE. The material and quality of the lamp housing and lampshade are the same as other same category courtyard lights.But this lamp is equipped with a high-quality LED bead main light source, which also has the advantages of soft light effect, sufficient brightness, energy conservation and environmental protection.

Heat dissipation at the top of the lamp housing ensures a longer lifespan of the light source.The light source can be customized from 80W to 200W according to customer needs.


Product Detail

Product Tags

Product Description

Day

Night

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is a high-purity alumina, which can effectively prevent glare.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The material of the transparent cover is PMMA or PC, with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, and the injection molding process is used.

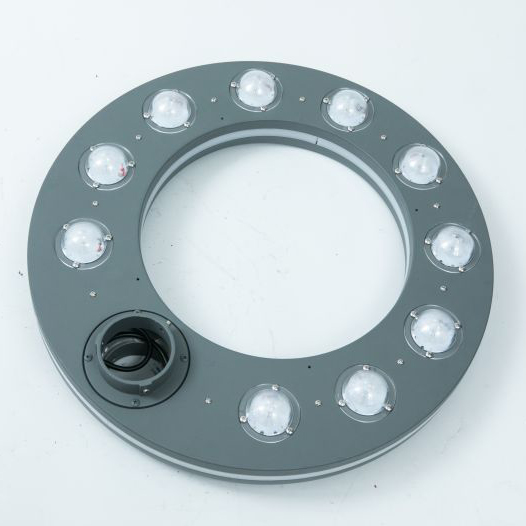

● The light source is an LED bead, which has the advantages of energy saving , environmental protection, high efficiency, and easy installation.

● The rated power can reach 30-60 watts, which can meet most lighting needs.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source. Waterproof grade can reach IP65 after professional testing.

● We not only have strict quality control processes, but also comprehensive packaging methods. Each lamp is covered with dust bags, and the outer packaging is 5 layers of thickened ridge paper, which plays a role in moisture-proof, shock-proof and reinforced. The box has built-in anti-collision pearl cotton, which effectively plays the role of buffer and anti-collision, and is clean and environmentally friendly and reusable, saving customers' packaging costs.

TYDT-00312-Energy-Saving-Courtyard-Led-Light-for-Garden-1

Technical parameters

Model

TYDT-00312

Dimension

Φ560*H50MM

Fixture Material

High pressure die-casting aluminum lamp body

Lamp Shade Material

 PMMA or PC

Rated Power

30W- 60W

Color temperature

2700-6500K

Luminous Flux

3300LM/6600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Ambient Temperature

 -40℃-60℃

Working Ambient humidity

10-90%

LED Life

>50000H

Protection Grade

IP65

Install Sleeve Diameter

Φ60   Φ76mm

Applicable Lamp Pole

3-4m

Packing Size

570*570*60MM

Net weight(KGS)

5.6

Gross Weight(KGS)

6.6

Colors and Coating

In addition to these parameters, the TYDT-00312 LED Courtyard Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

Factory Tour

Factory Tour (24)
Factory Tour (18)
Factory Tour (15)
Factory Tour (8)
Factory Tour (13)
Factory Tour (11)
