TYDT-02302 Garden Light Installation is Simple and Easy for Yard or Park

Short Description:

The TYDT-02302Garden Light Installation is easy and simple, which is fixed to the lamp pole with a small number of sufficiently long bolts.
The Garden Light is also has a low-maintenance lighting solution that requires minimal upkeep. The top of this lamp can be opened, to clean he lamp is easy, and the long-lasting light source are designed to brighten up your outdoor space for years to come.

We can customize according to the drawings or design according to the customer’s ideas. The price is flexible and the delivery time is timely. We look forward to your inquiry.


Product Detail

Product Tags

Product Description

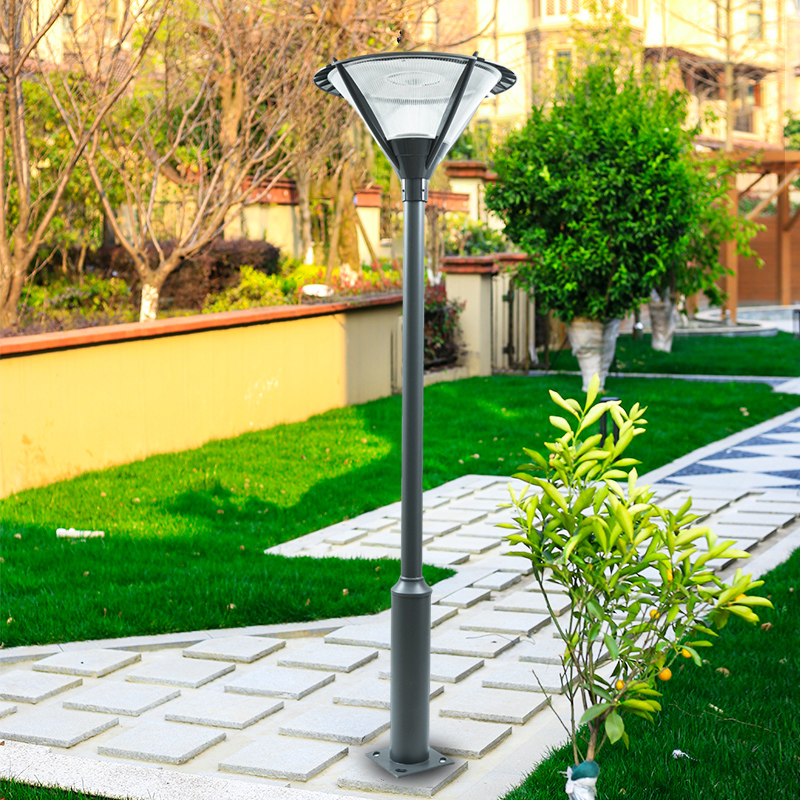

Day

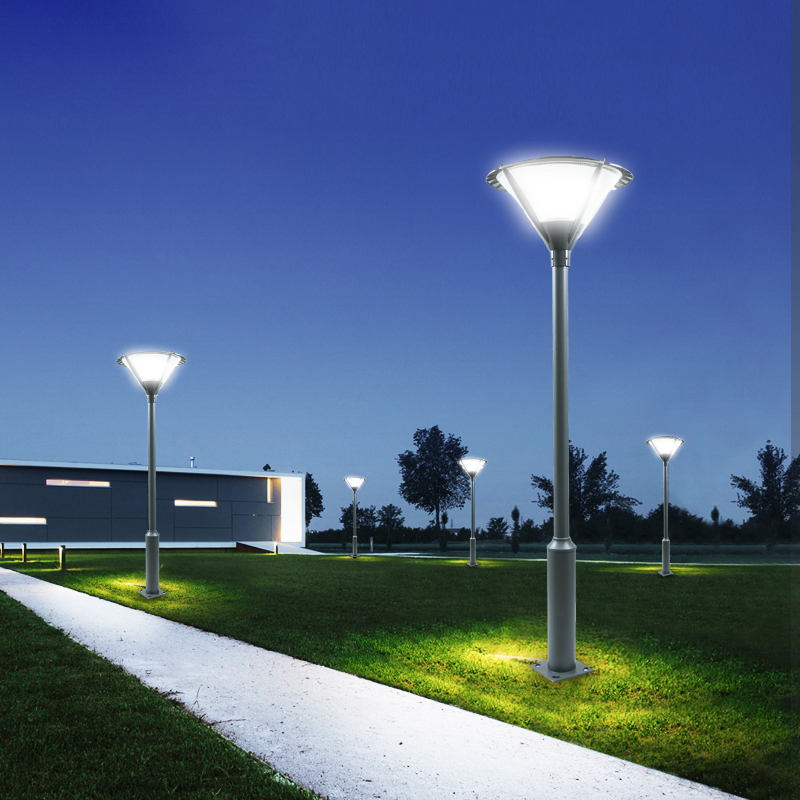

Night

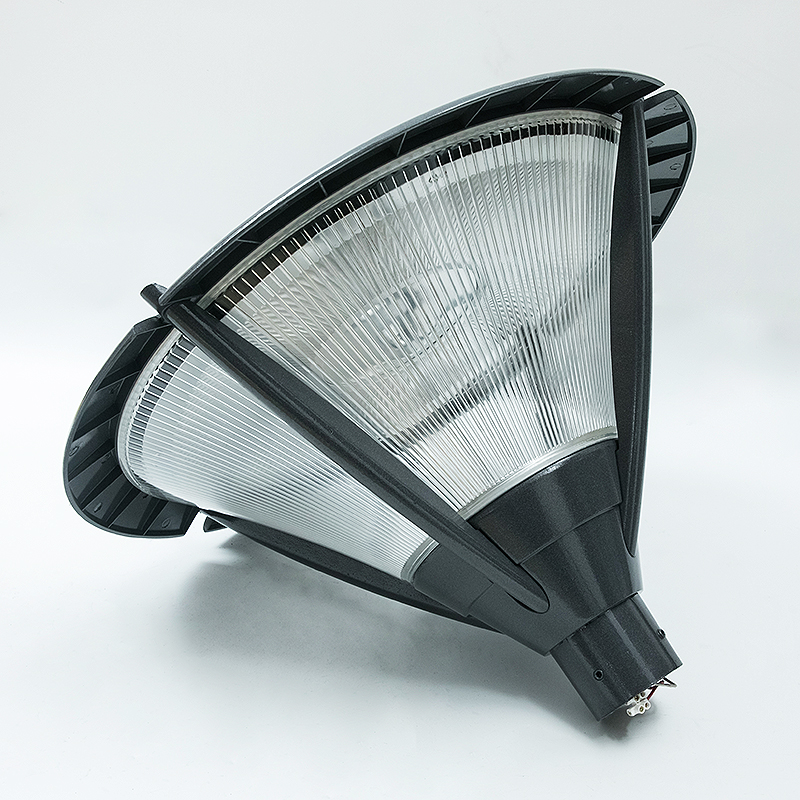

● The material of this product is aluminum and the process is aluminum die-casting with pure polyester electrostatic spraying surface treatment. The internal reflector is a high-purity alumina oxide can effectively anti glare.

 The color is transparent of cover made by PMMA or PC and the injection molding process is used. This cover has good light conductivity and no glare due to light diffusion.



● This garden light equipped with an E27 universal ceramic lamp head, which is corrosion-resistant and high-temperature resistant, allowing the lamp to have a longer service life and reduce maintenance times.

 There is a heat dissipation designed on the top of the lamp to dissipate heat and ensure the service life of the light source. The stainless steel fasteners used to the whole of the lamp anti corrode. We got the certificate of IP65 waterproof grade after professional testing.

 This perfect outdoor illumination solution can use squares, residential areas, parks, streets, gardens, parking lots, city walkways and etc.

Garden Light Installation

Technical parameters

Product Information

Model No.

TYDT-02302

Dimensions

Φ680MM*H480MM

Housing Material

High pressure die-casting aluminum lamp body

Cover Material

PMMA or PC

Rated Power(w)

30W    60W

Color temperature(k)

2700-6500K

Luminous Flux(lm)

3300LM / 6600LM

Input  Voltage(v)

AC85-265V

Frequency range(HZ)

50 / 60HZ

 Factor of Power

PF> 0.9

Rendering Index of Color

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

LED Life

>50000H

Waterproof

IP65

Install  Diameter(mm)

Φ60 / Φ76mm

Applicable Height(m)

3-4m

Packing Size(mm)

700*700*500MM

N.W.(KGS)

7.7

G.W(KGS)

8.7





Colors and Coating

In addition to these parameters, the TYN-012802 Solar Lawn Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

Factory Tour

Factory Tour (24)
Factory Tour (26)
Factory Tour (19)
Factory Tour (15)
Factory Tour (3)
Factory Tour (22)
