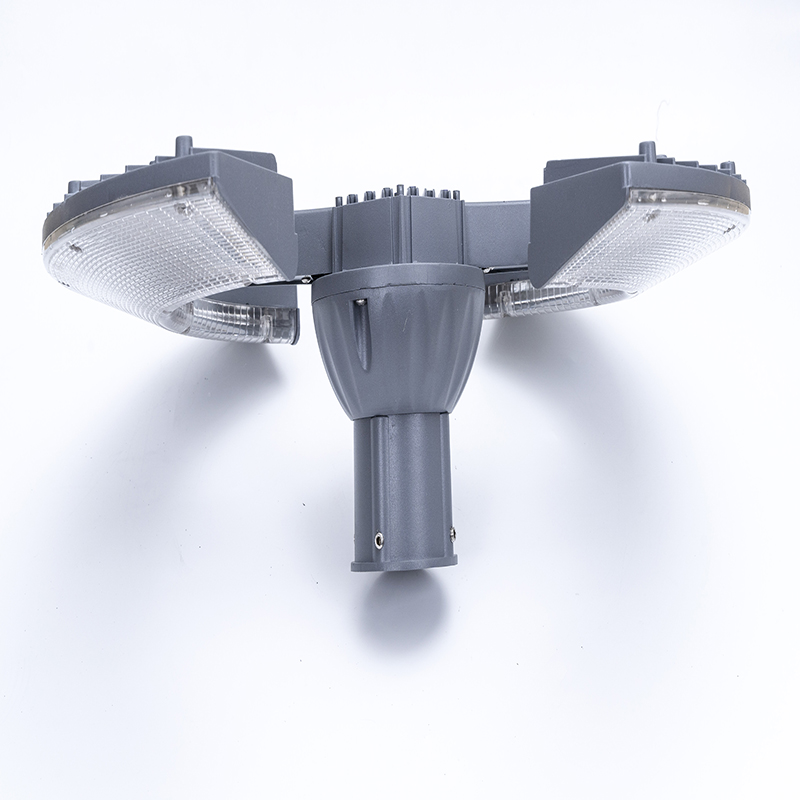

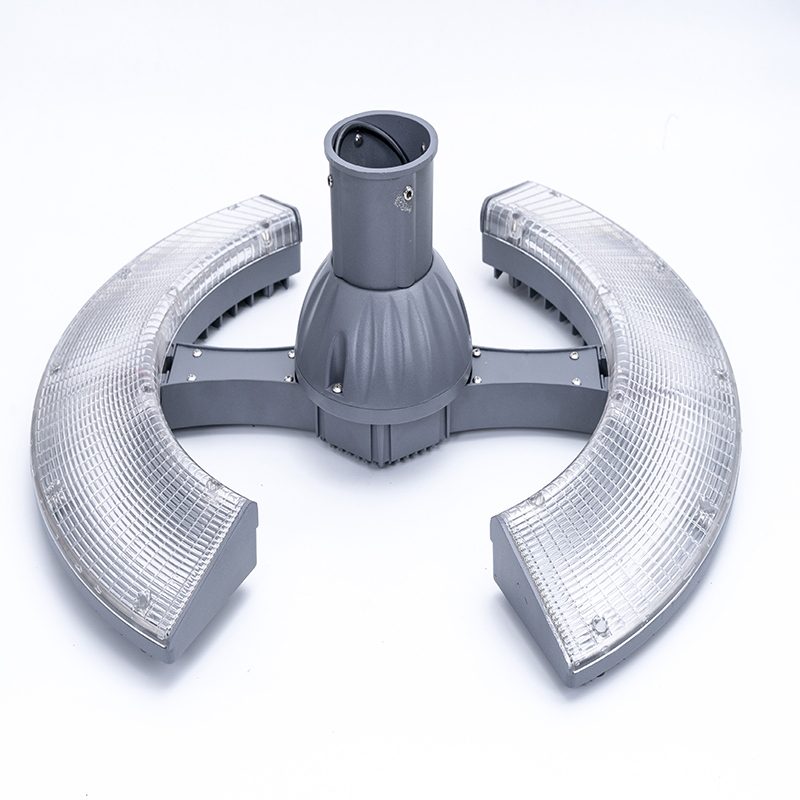

TYDT-10 Decoration Led Light for Garden and Courtyard

Short Description:

TYDT-10 designed for international market too. It is still a popular style, and I believe most people will like its fashionable and unique design.

 It is made of high-quality aluminum shell to ensure the weather resistance of this lamp,such as rain, snow, and ultraviolet radiation, and can resist corrosion and damage caused by adverse weather.

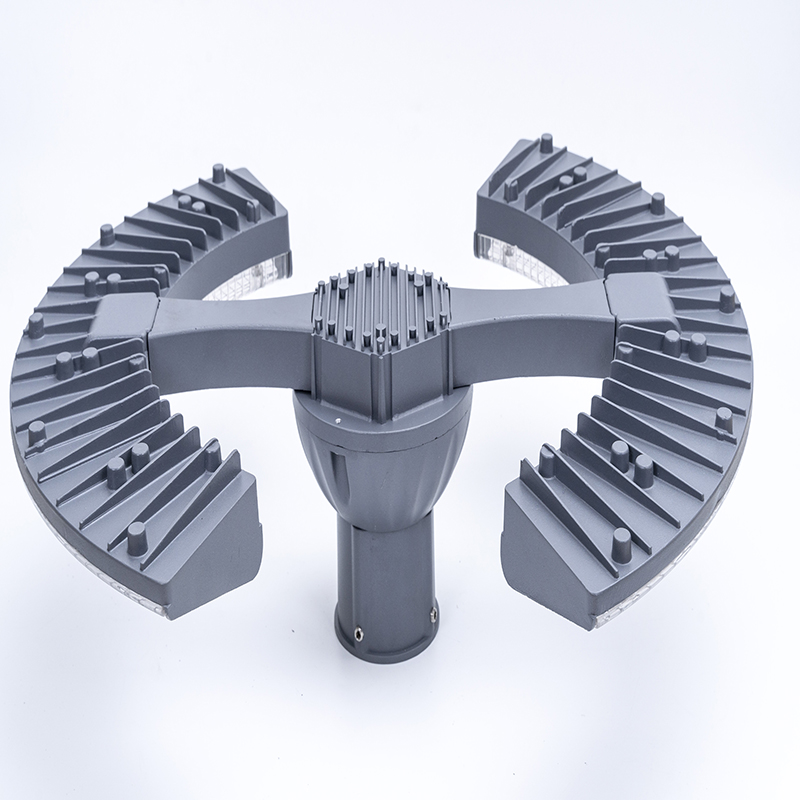

The biggest feature of the lamp is that the lamp housing has a large number of cast aluminum parts, which can effectively dissipate heat and ensure the service life of the light source. Both the lamp and the exterior of the lamp housing have a heat dissipation design.


Product Detail

Product Tags

Product Description

Day

Night

●  This Led light for garden made of high-quality die-cast aluminum with the surface treatment as pure polyester electrostatic spraying to beautify it and to anti-corrosion. It has excellent thermal radiation, optical and electrical capabilities.



 The light source of to use an LED module which selected from high-quality LED chips, with a rated power of up to 30-60 watts, which can meet most lighting needs. Internationally renowned brand drivers are available for selection. The entire lamp adopts stainless steel fasteners, which are not easy to corrode.





● This lamp is easy to install and is fixed to the lamp pole with a small amount of bolts that are long enough. When installing the courtyard lamp, open the packaging, check the integrity of the courtyard lamp, refer to the product manual, assemble and wire.



● This decoration Led garden light for outdoor illumination way, such as squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.







8

Technical parameters

Product Parameters

Product Code:

           TYDT-10

Dimension(mm):

Φ600mm*H180mm

Material of Housing

High quality Aluminum

Material of Cover

PS or PC

Wattage(w)

30to 60W  others can customize

Color temperature(k)

2700-6500K

Luminous Flux(lm)

3300LM/3600LM

Input  Voltage(v)

AC85-265V

Frequency range(HZ)

50/60HZ

Factor of Power:

PF> 0.9

 Rendering Index of Color:

> 70

Temperature of Working:

 -40℃-60℃

 Humidity of Working:

10-90%

Life Time(h):

50000 hours

Certificates:

CE  IP65  ISO9001

Installation Spigot Size(mm):

60mm  76mm

Applicable Height(m):

3m -4m

Packing(mm):

610*610*190MM/ 1 unit

N.W(KGS):

3.8

G.W(KGS):

4.3

Colors and Coating

In addition to these parameters, the TYDT-10  Decoration Led Light for Garden and Courtyard is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
