TYDT-15 30W to 60W Low Voltage LED Garden Light

Short Description:

LED courtyard lights are smaller compared to tall road light pole, it’s exquisite and decoration, making outdoor places such as squares, communities, parks, streets, gardens, parking lots, and urban pedestrian paths more beautiful. Moreover, the installation is convenient, and it is fixed to the light pole with a small amount of bolts that are long enough. During installation, open the packaging, check the integrity of the courtyard light, refer to the product manual for assembly and wiring.  You can independently complete such a simple and convenient operation.


Product Detail

Product Tags

Product Description

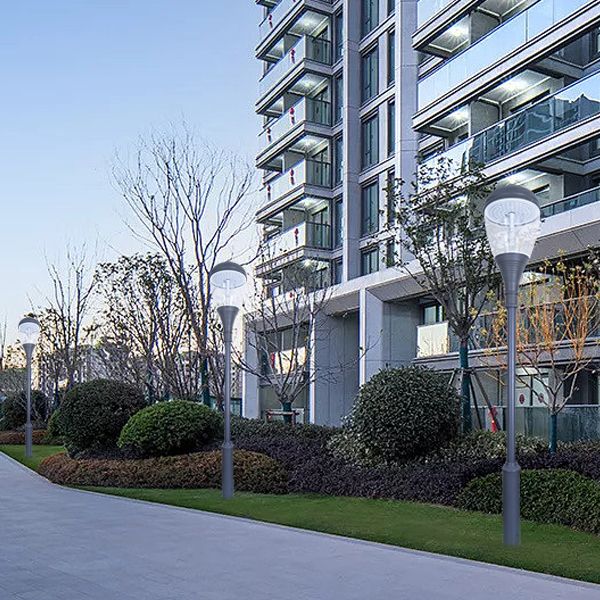

Day

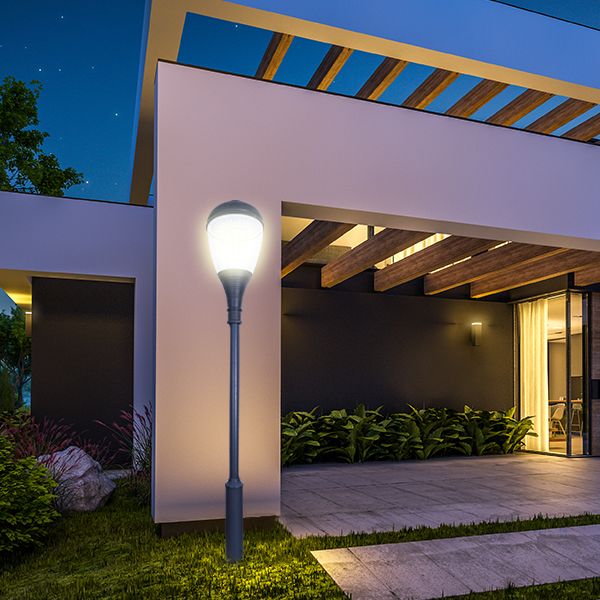

Night

● This lamp is made of high-quality aluminum, the material of top cover and middle decorative parts made of spinning aluminum, and the other parts made of die-casting aluminum. The transparent cover material is PC or PMMA.

● This courtyard light equipped with high-efficiency and long-life LED light sources, ensuring that LED garden lights are suitable for outdoor use. The light source has excellent thermal radiation, optical, and electrical capabilities. It can be equipped with internationally renowned brand drivers, with LED modules as the light source and high-quality Philips LED chips selected. The rated power can reach 30-60w, and more watts can be customized. Due to the high color rendering of light>70, illuminated objects look very natural! Warranty up to 5 years.

● This courtyard matched the heat dissipation device at top and the exterior of the lamp to ensure the service life of the light source. The fasteners of lamp adopts stainless steel material which are not easy to corrode.

● We have a professional quality control team in the production process to conduct strict quality inspections on each processing process against the relevant standards of each process, and control the production process to ensure that the quality of each set of lights meets the requirements.

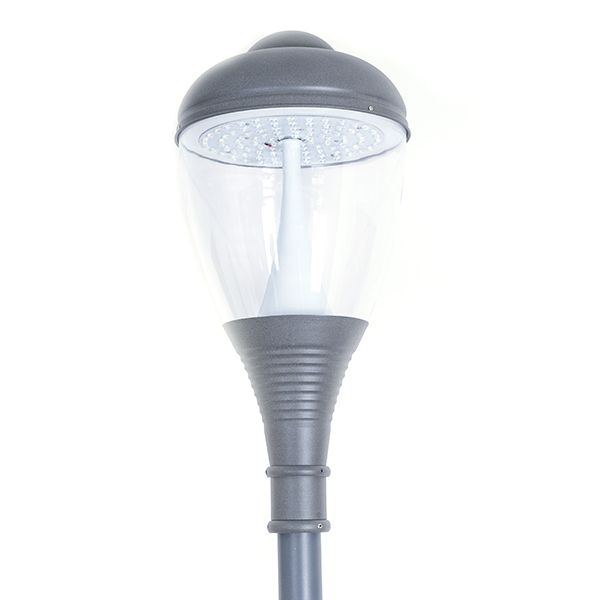

TYDT-15-4

Technical parameters

Product Parameters

Product Code

TYDT-15

Dimension

Φ420mm*H890mm

Housing Material

High quality aluminum

Cover Material

PMMA or PC

Wattage

30W- 60W

Color temperature

2700-6500K

Luminous Flux

3300LM/3600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

50000 hours

Certificate

CE  IP65  ISO9001

Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Packing

500*500*350MM/ 1 unit

Net weight(kgs)

5.75

Gross Weight(kgs)

6.25

Colors and Coating

In addition to these parameters, the TYDT-15 Led Courtyard Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)
