TYDT-3 Using Night LED Garden Light for Yard and Park

Short Description:

Our new designed  LED courtyard light recently , product model TYDT-3. And has a patent certificate. In order to meet the needs of customers from various countries, this lamp has passed CE certification. As an outdoor lamp, waterproof and dust proof testing is essential, and the waterproof level can reach IP65 through testing by professional organizations. Transparent cover PC or PS, with stripe embossing process inside. Both the base and top cover surfaces have embossing technology, making the product different from similar LED courtyard lights and more recognizable.


Product Detail

Product Tags

Product Description

Day

Night

● The material of this product is die-casting aluminum.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The light source is an LED module with a rated power of up to 30-60 watts,or to customize more watts. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Using well-known brand drivers and chips, with a warranty of up to 3 years.

● There is a heat dissipation device on the top and outside of the lamp, which can effectively dissipate heat and ensure the service life of the light source. The entire lamp adopts stainless steel fasteners, which are not easy to corrode.

● We have a professional quality control team in the production process to conduct strict quality inspections on each processing process against the relevant standards of each process, and control the production process to ensure that the quality of each set of lights meets the requirements.

● Each lamp is covered with dust bags, and the outer packaging is 5 layers of thickened ridge paper, which plays a role in moisture-proof, shock-proof and reinforced.

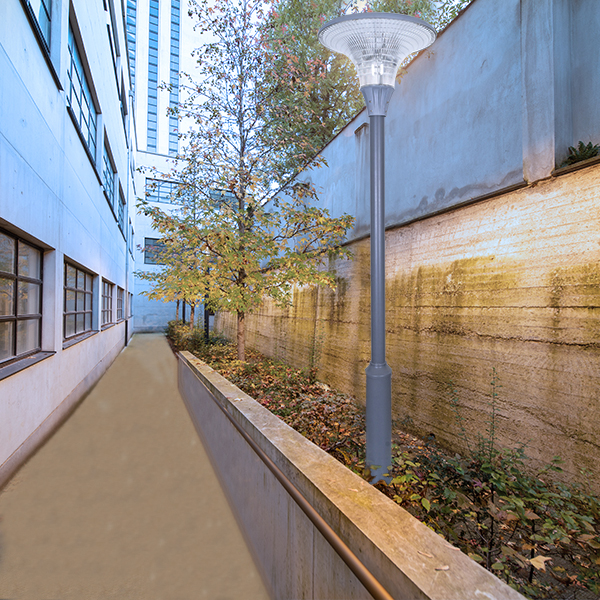

TYDT-3-10

Technical parameters

Product Code

TYDT-3

Dimension

Φ540mm*H420mm

Housing Material

High pressure die-casting aluminum

Cover Material

 PC or PS

Wattage

20W- 100W

Color temperature

2700-6500K

Luminous Flux

3300LM/6600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

50000 hours

IP Rating

IP65

Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Packing

550*550*430MM/1 unit

Net weight(kgs)

4.61

Gross Weight(kgs)

5.11



Colors and Coating

In addition to these parameters, the TYDT-3  LED Garden Light for night is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
