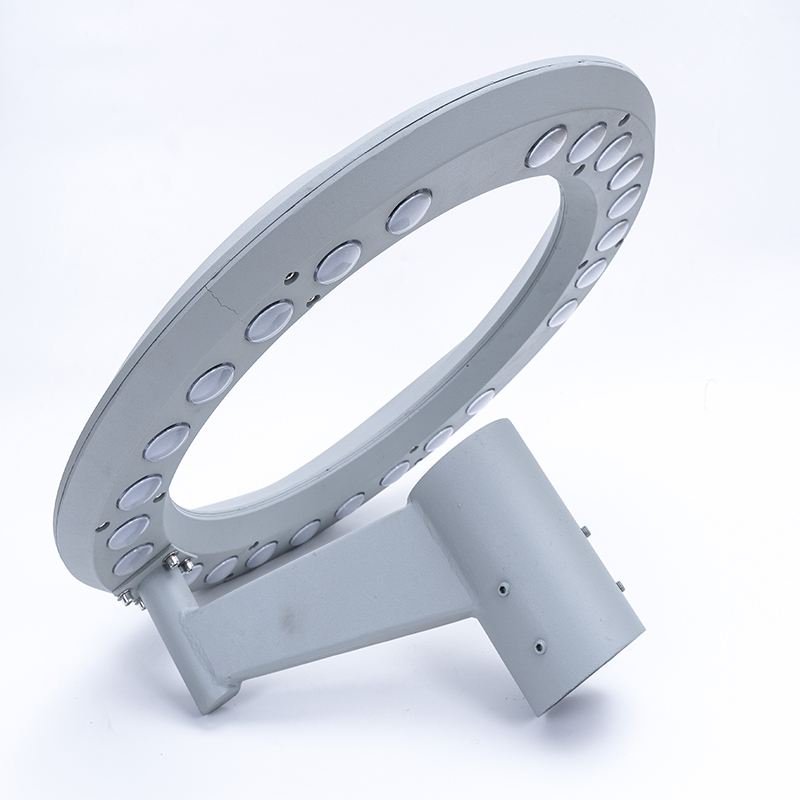

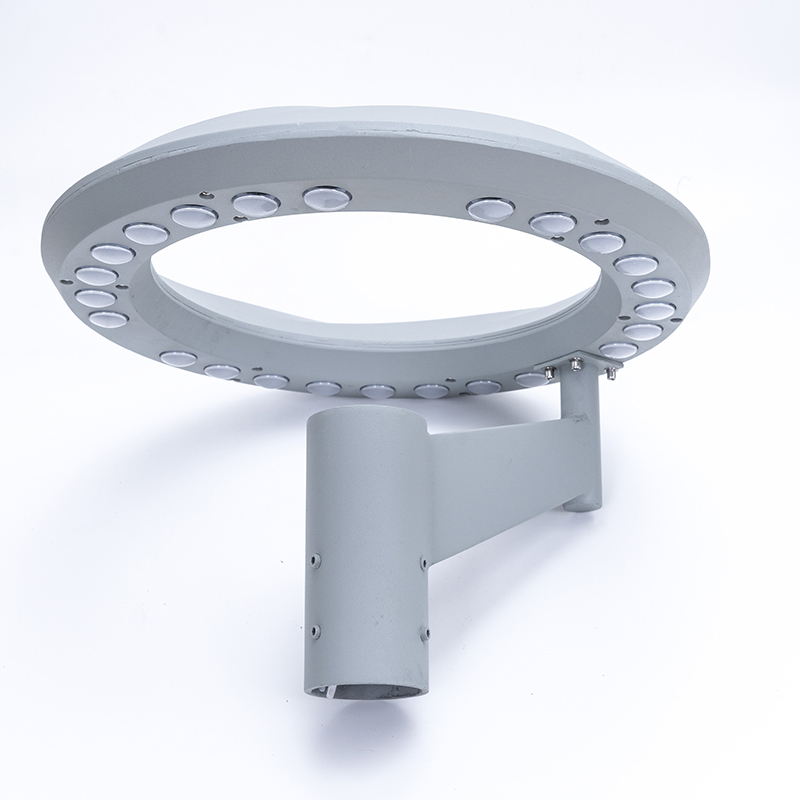

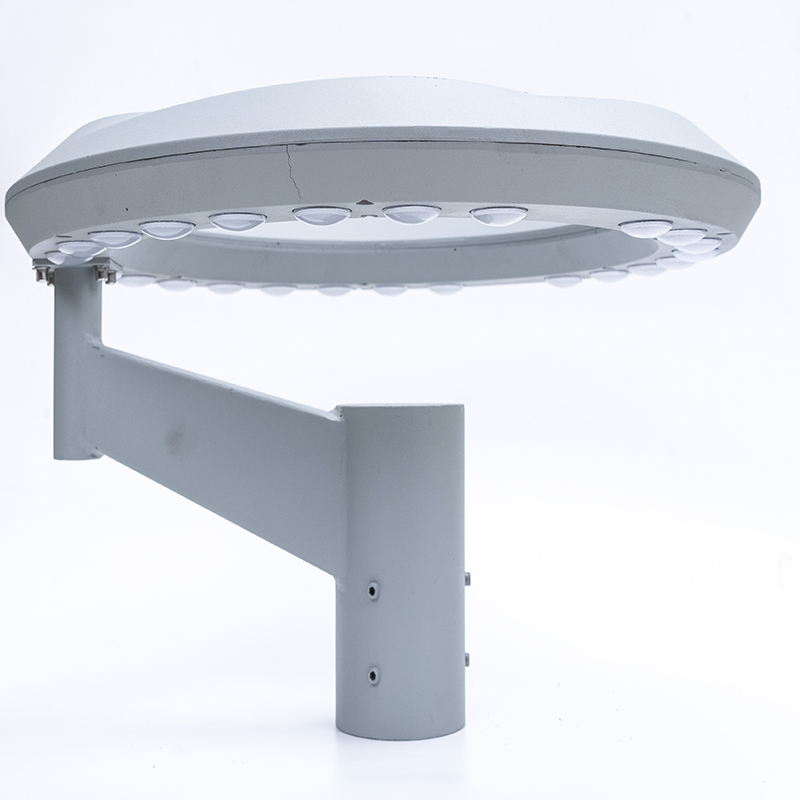

TYDT-4 Waterproof LED IP65 Garden Light with CE Certificate

Short Description:

This is another new LED courtyard light launched by our company, with the product model TYDT-4. It has two installation methods. Excellent thermal radiation, optical, and electrical capabilities. Die-cast aluminum shell. The surface of this light has powder spraying anti-corrosion treatment and also can beautify the lamp.Diffuse reflection. Water proof IP65. This light has  5-year or 7-year warranty.

We have equipped this lamp with a high-efficiency and long-lasting heat radiator, which improves the product’s heat dissipation performance and prolongs its lifespan.


Product Detail

Product Tags

Product Description

Day

Night

● The milky white and transparent color cover made by PC or PS which has good light conductivity and no glare due to light diffusion. And injection molding process is used.

● The light source is an LED module with a rated power of up to 30-60 watts, more watts can be customized. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Internationally brand drivers available for selection.

● The lamp equip with a heat dissipation device on the top and outside of the lamp, which can effectively dissipate heat and ensure the service life of the light source. The entire lamp adopts stainless steel fasteners, which are not easy to corrode.

● Each lamp is covered with dust bags, and the outer packaging is 5 layers of thickened ridge paper, which plays a role in moisture-proof, shock-proof and reinforced. The box has built-in anti-collision pearl cotton, which effectively plays the role of buffer and anti-collision, and is clean and environmentally friendly and reusable, saving customers' packaging costs.

4

Technical parameters

Product Code

TYDT-4

Dimension

Φ500mm*H280mm

Housing Material

High pressure die-casting aluminum

Cover Material

 PC or PS

Wattage

30W- 60W

Color temperature

2700-6500K

Luminous Flux

3300LM/6600LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

50000 hours

IP Rating

IP65





Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Packing

510*510*300MM/ 1 unit

Net weight(kgs)

5.37

Gross Weight(kgs)

5.87

Colors and Coating

In addition to these parameters, the TYDT-4 IP65  Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
