TYDT-7 Customized IP65 Outdoor Lights for Garden and Yard

Short Description:

TYDT-7 Courtyard light is a type of outdoor lighting fixture, usually referring to outdoor road lighting fixtures below 6 meters. Its main components are: light source, lamp, light pole, flange, and foundation embedded parts. Courtyard lights have the characteristics of diversity, aesthetics, beautification, and decoration of the environment, so they are also called landscape courtyard lights. Mainly used for outdoor lighting in urban slow lanes, narrow lanes, residential areas, tourist attractions, parks, squares, and other public places, it can prolong people’s outdoor activities and improve property and personal safety.


Product Detail

Product Tags

Product Description

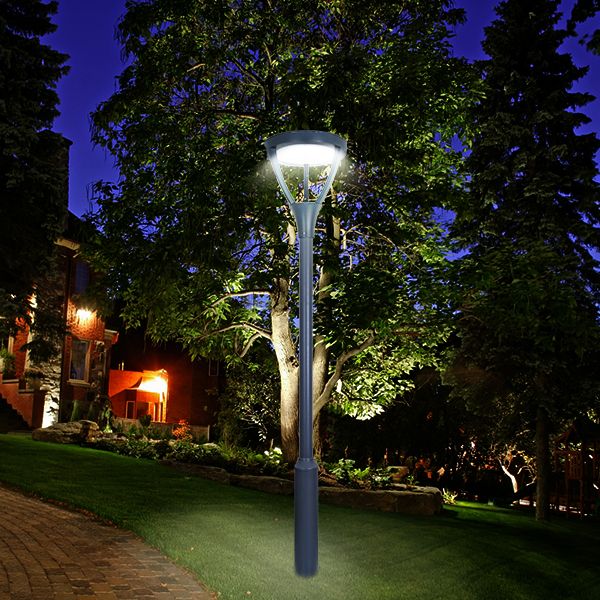

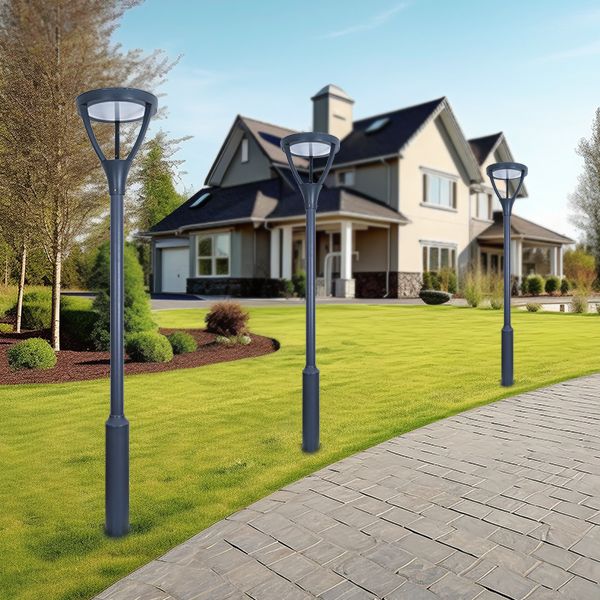

Day

Night

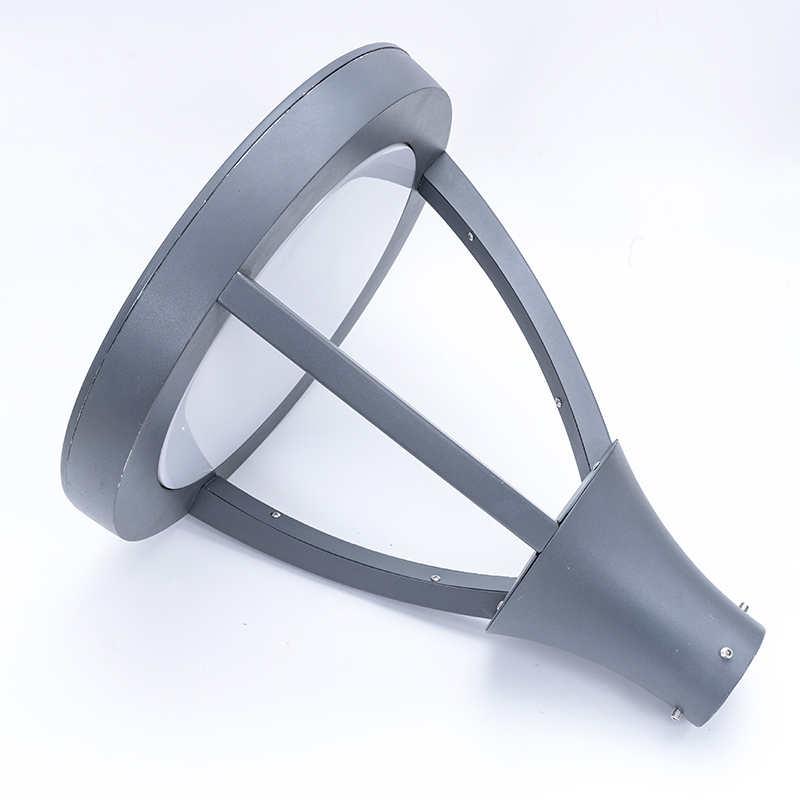

● This lamp has 3 pillars and garden lamp  high-quality die-cast aluminum casing  shell, excellent thermal radiation, optical and electrical capabilities. The surface with powder coating to anti-corrosion treatment.

● This LED garden light adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.



● Energy save, environmental-friendly, high efficiency, and easy installation are the advantages of LED source. And this lamp matched an LED module light source and the rated power from 30-60 watts .

● Our IP65 Outdoor Lights applicable for various outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths and etc.





3

Technical parameters

Product Parameters:

Product Code:

TYDT-7

Dimension:

Φ440mm*H490mm

Housing Material:

High pressure die-casting aluminum

Cover Material

Tempering glass

Wattage:

30W- 60W

Color temperature:

2700-6500K

Luminous Flux:

3600LM/7200LM

Input  Voltage:

AC85-265V

Frequency range:

50/60HZ

Power factor:

PF> 0.9

Color Rendering Index:

> 70

Working Temperature:

 -40℃-60℃

Working  humidity:

10-90%

Life Time:

50000 hours

IP Rating:

IP65

Installation Spigot Size:

60mm  76mm

Applicable Height:

3m -4m

Packing:

450*450*350MM/ 1 unit

Net weight(KGS)

5.34

Gross Weight(KGS)

5.84





Colors and Coating

In addition to these parameters, the TYN-012802 Solar Lawn Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
