TYDT-7 Garden Lighting Systems for Pathway,Garden or Park

Short Description:

TYDT-7 Courtyard light is a type of outdoor lighting fixture, usually referring to outdoor road lighting fixtures below 6 meters.

 Its main components are: light source, lamp, light pole, flange, and foundation embedded parts.

At the heart of the Garden Light system is our commitment to providing reliable quality for our customers. As a experienced and professional China factory, we ensure strict quality control measures at every stage of production to guarantee the reliability and performance of our products. By eliminating middlemen, we are able to offer our Garden Light at a competitive price, making it accessible for everyone.


Product Detail

Product Tags

Product Description

Day

Night

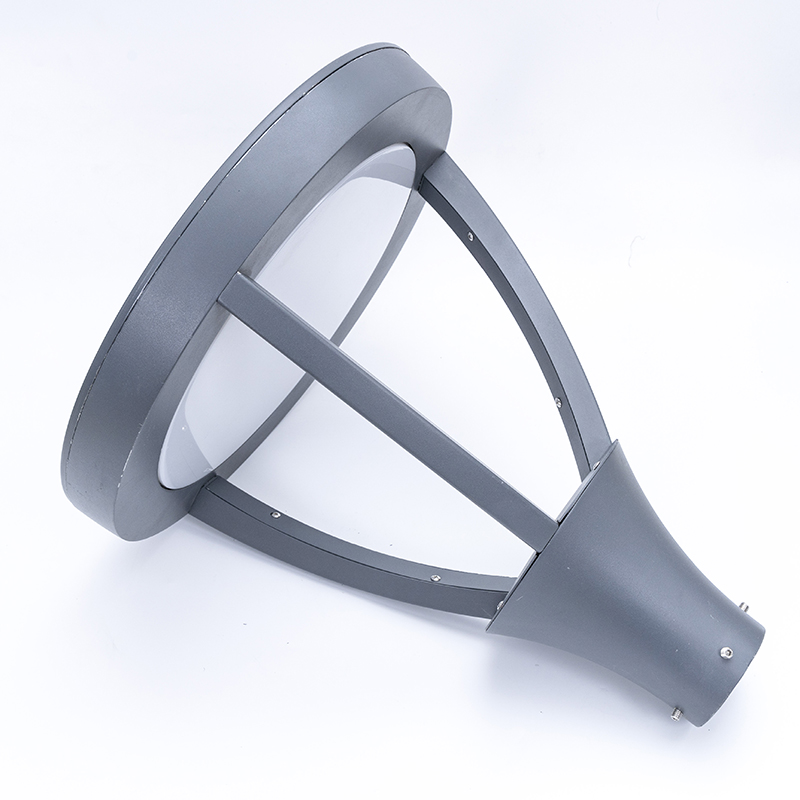

 The material of the garden lamp is high-quality die-cast aluminum casing with the powder coating to anti-rust. This lamp has 3 pillars, it can be disassembled during packaging to save packaging and transportation costs

 There is a heat dissipation device on the top of the lamp to dissipate heat and ensure the service life of the light source.

This garden lighting used stainless steel fasteners to anti-rust.



 The light source is an LED module, with high-quality LED chips selected and equipped with internationally well-known brand drivers.

The rated power of garden lighting system can reach 30-60 watts, and more power can be customized. This light can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.

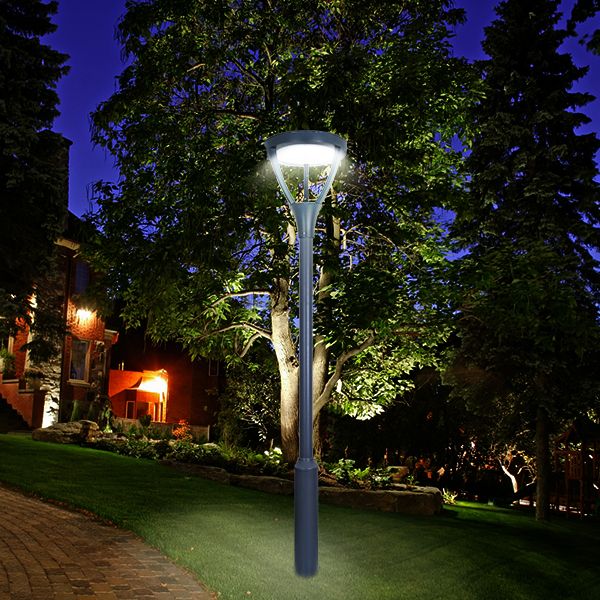

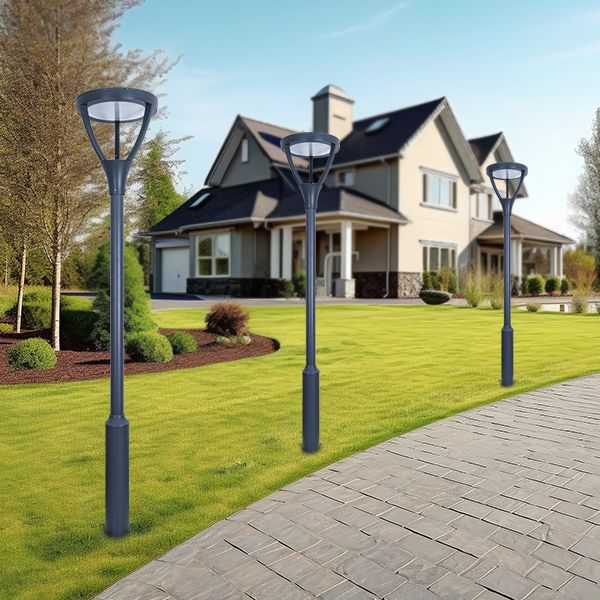

Our garden light widely use to various outdoor places like squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths to make the outdoor places more beautiful.



Garden Lighting Systems

Technical parameters

Product Details

Code of Product

TYDT-7

Dimension(mm)

Φ440mm*H490mm

Material of Housing

High pressure die-casting aluminum

 Material of  Cover

Tempering glass

Wattage(w)

30W- 60W

Color temperature(k)

2700-6500K

Luminous Flux(lm)

3600LM/7200LM

Input  Voltage(v)

AC85-265V

Frequency range(HZ)

50/60HZ

Factor of Power

PF> 0.9

Rendering Index of Color

> 70

Temperature of Working

 -40℃-60℃

Humidity of Working

10-90%

Life Time(H)

50000 hours

Waterproof

IP65

 Spigot Size(mm)

60mm  76mm

Applicable Height(m)

3m -4m

Packing (mm)

450*450*350MM/ 1 unit

N.W.(kgs)

5.34

G.W.(kgs)

5.84





Colors and Coating

In addition to these parameters, the TYN-012802 Solar Lawn Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
