TYN-3 Perfect Lighting Solution of Solar integrated Garden Light

Short Description:

Outdoor garden lights using solar energy are the perfect landscape lighting solution. They tend to be budget-friendly and easy to install, and you can place them exactly where you want them because they don’t require plug-in power sources.

TYN-3 is a small and exquisite and also a solar integrated courtyard lamp that uses solar radiation as its energy source, without the need for complex and expensive pipeline laying, and is not limited by terrain. The layout of the lamp can be adjusted arbitrarily, making it easy to install.


Product Detail

Product Tags

Product Description

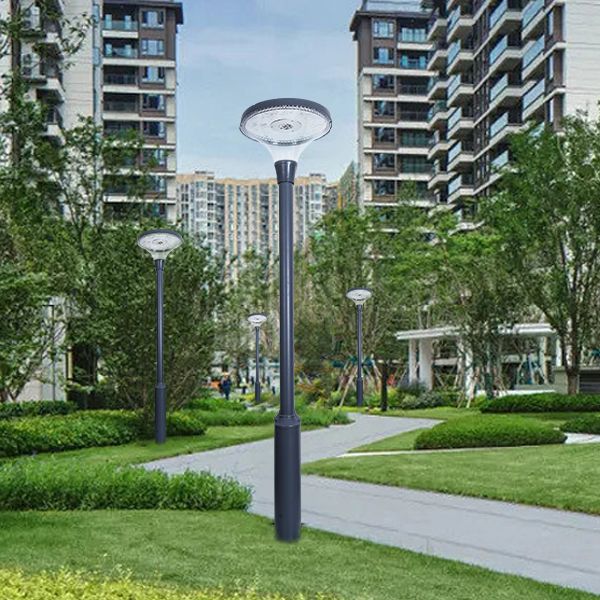

Day

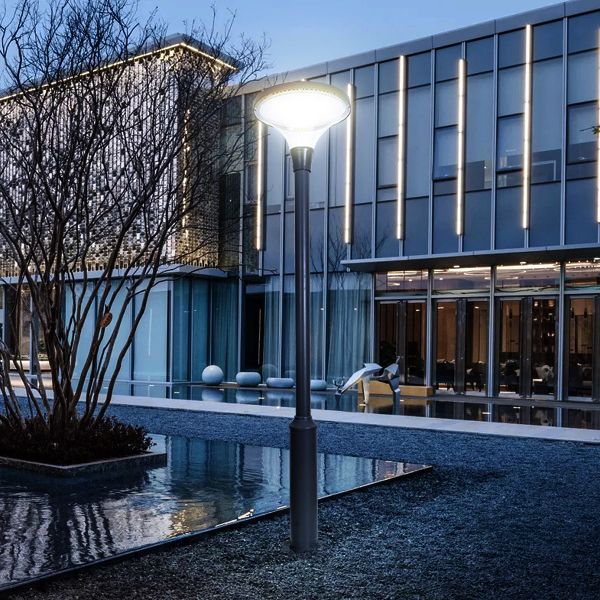

Night

● The material of housing is aluminum and the process is aluminum die-casting. We use the polished and pure polyester electrostatic spraying technology treatment of surface which is look nice and effectively prevent corrosion.

●  PMMA or PC is the material of the transparent cover to effectively prevent glare. The color is transparent, and the injection molding process is used. The internal reflector is made of high-purity aluminum oxide, which can effectively prevent glare.

● The light source is an LED module, and its rated power can reach 6-20 watts, we are also can customize more watts. The advantages of solar panel LED light are energy conservation, environmental protection, high efficiency, and easy installation.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● All the decorative garden light used for squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.

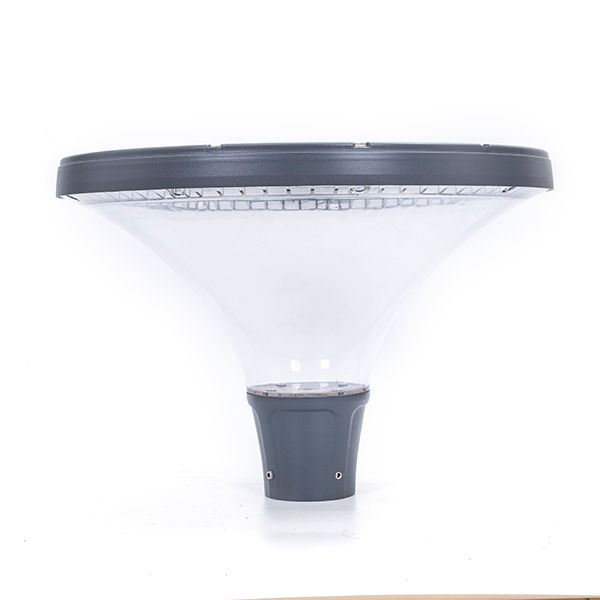

TYN-3-2

Technical parameters

Technical parameters

Model

TYN-3

Dimension

W470*H320MM

 Material of Housing

High pressure die-casting aluminum

 Material of Transparent Cover

PMMA or PC

Solar Panel Capacity

5v/18w

Color Rendering Index

> 70

Battery Capacity

3.2v lithium iron phosphate battery 20ah

Lighting Time

Highlighting for the first 4 hours and intelligent control after 4 hours

Control method

Time control and light control

Luminous Flux

100LM  / W

Color temperature

3000-6000K

Install Sleeve Diameter

Φ60   Φ76mm

Applicable Lamp Pole

3m-4m

Installation Distance

10m-15m

Certificates

IP65  CE  ISO9001

Packing Size

480*480*330MM

Net weight(KGS)

4.76

Gross Weight(KGS)

5.26

Colors and Coating

In addition to these parameters, the TYN-3 LED Solar integrated Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)
