TYN-711 Solar integrated courtyard light with LED Light Source

Short Description:

This is a solar integrated courtyard lamp that uses solar radiation as its energy source, without the need for complex and expensive pipeline laying, and is not limited by terrain. The layout of the lamp can be adjusted arbitrarily, making it easy to install.

The shape of this garden light is square and the size is 510MM in the side length and also 510mm for height to match 3m to 4m height post for it. The lighting at this height is the best height for decorating and light up the garden and your yard. It has a low rated power and With its efficient solar system, yard lights do not require electricity, making them highly cost-effective and reducing your energy bills. You can enjoy the beauty of night view without any burden.


Product Detail

Product Tags

Product Description

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is a high-purity alumina, which can effectively prevent glare. The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The rated power can reach 6-20 watts, which can meet most lighting needs.

● The light source is an LED module, which has the advantages of energy conservation, environmental protection, high efficiency, and easy installation.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● The material of the transparent cover is PMMA or PC, with good light conductivity, diffuse light without glare, and the color can be transparent. The inner side of the lampshade has a prismatic embossing process to prevent glare, and the injection molding process is used.

● This lamp has four pillars and has good wind resistance。The parameters of the solar panel are 5v/18w, the capacity of the 3.2V lithium iron phosphate battery is 20ah, and the color rendering index is>70.

●  Control method: time control and light control, with illumination time of highlighting for the first 4 hours and intelligent control after 4 hours

● Our product has obtained IP65 testing certificates, ISO and CE certificates.

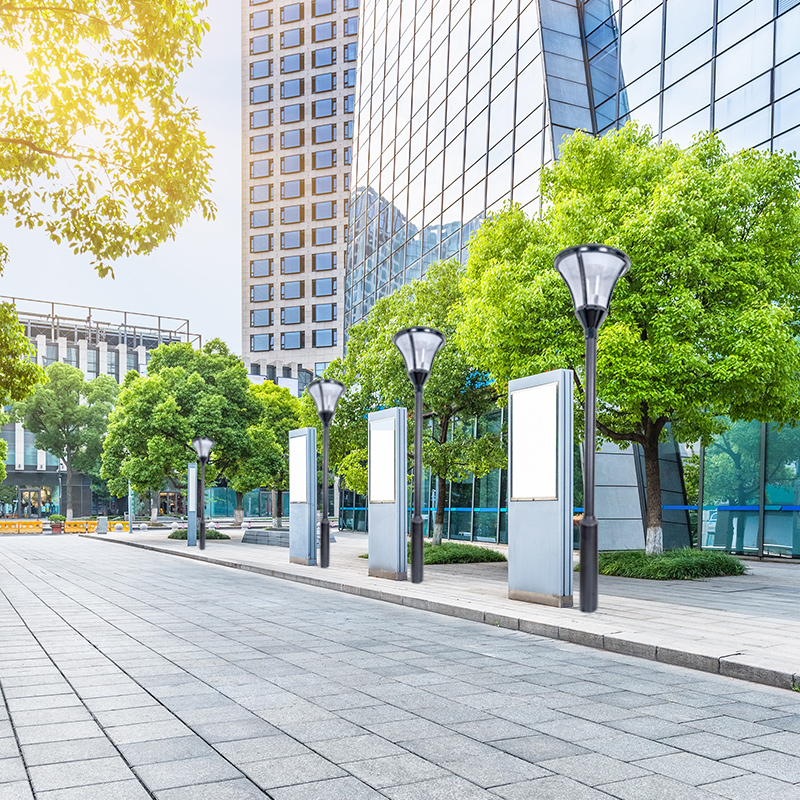

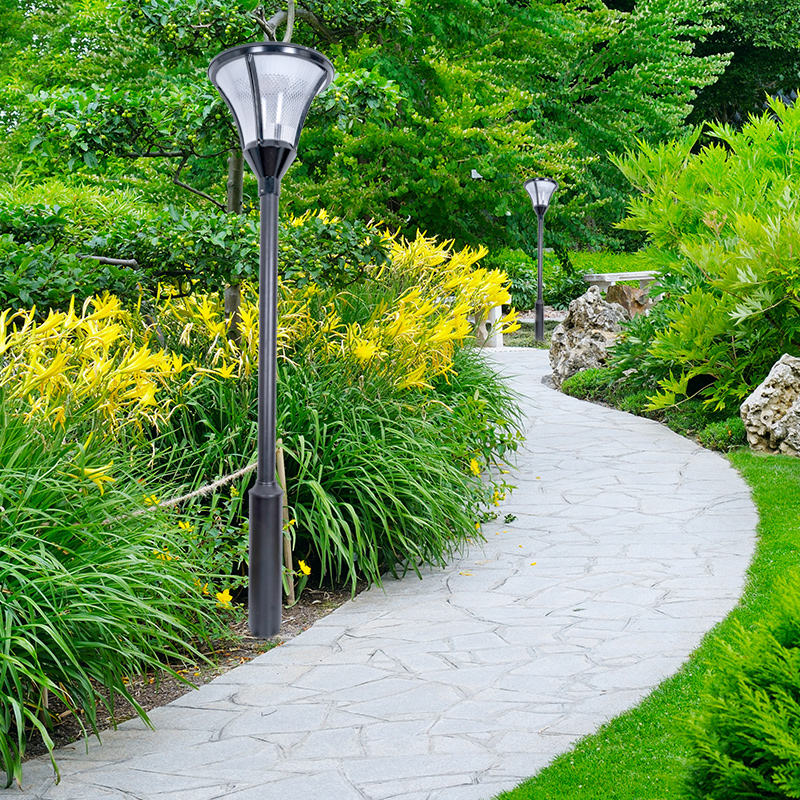

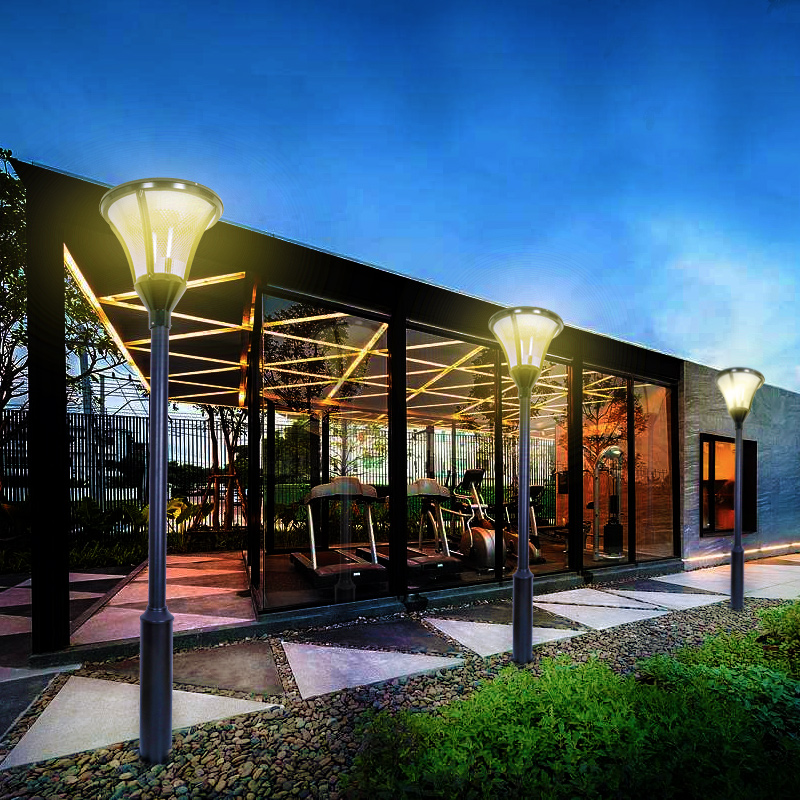

● This product can be used in outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.

TYN-711-(3)

Technical parameters

Model

TYN-711

Dimension

W510*H510MM

Fixture Material

High pressure die-casting aluminum lamp body

Lamp Shade Material

 PMMA or PC

Solar Panel Capacity

5v/18w

Color Rendering Index

> 70

Battery Capacity

3.2v lithium iron phosphate battery 20ah

Lighting Time

Highlighting for the first 4 hours and intelligent control after 4 hours

Control method

Time control and light control

Luminous Flux

100LM  / W

Color temperature

3000-6000K

Install Sleeve Diameter

Φ60   Φ76mm

Applicable Lamp Pole

3-4m

Installation Distance

10m-15m

Packing Size

520*520*520MM

Net weight(KGS)

5.2

Gross Weight(KGS)

5.7

Colors and Coating

In addition to these parameters, the TYN-711 Solar LED Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (4)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (5)
CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (6)

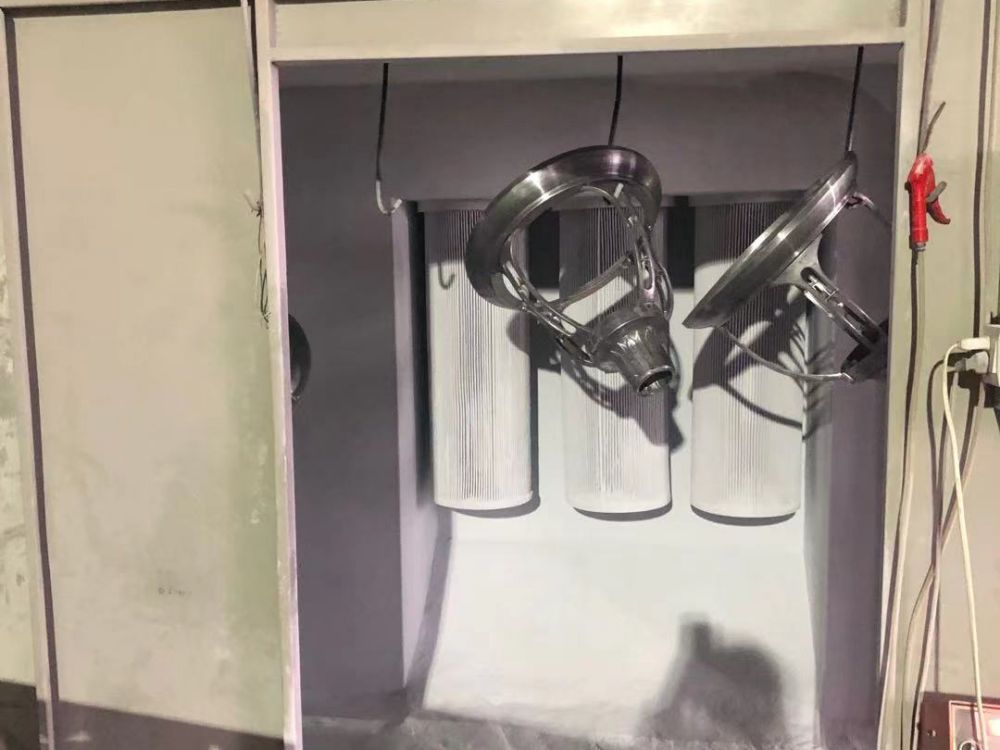

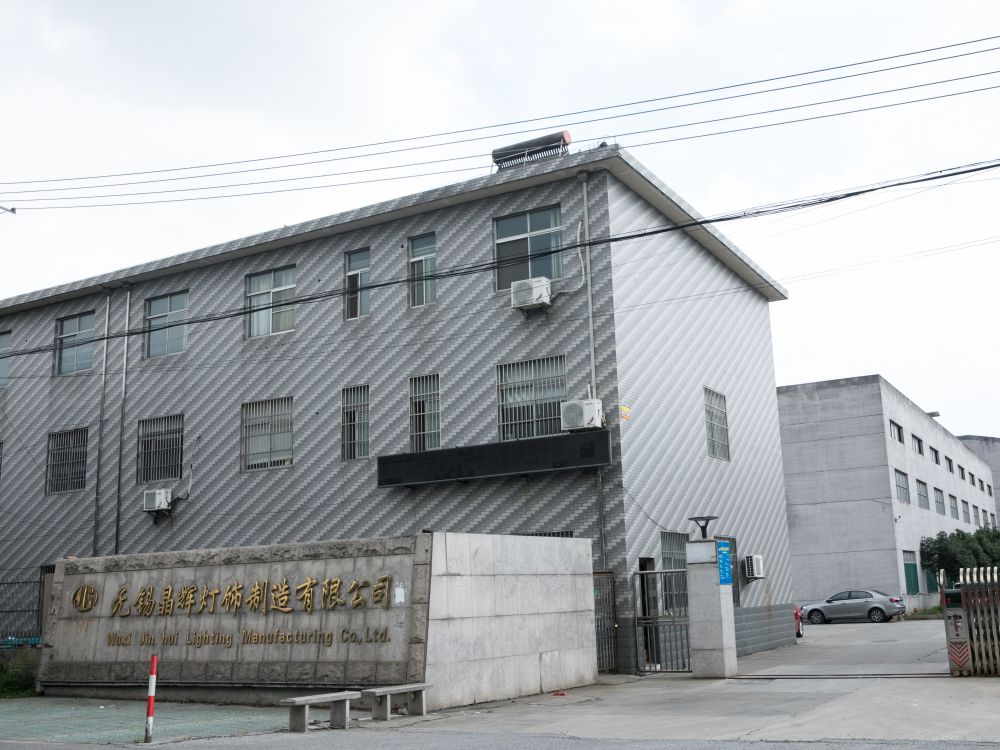

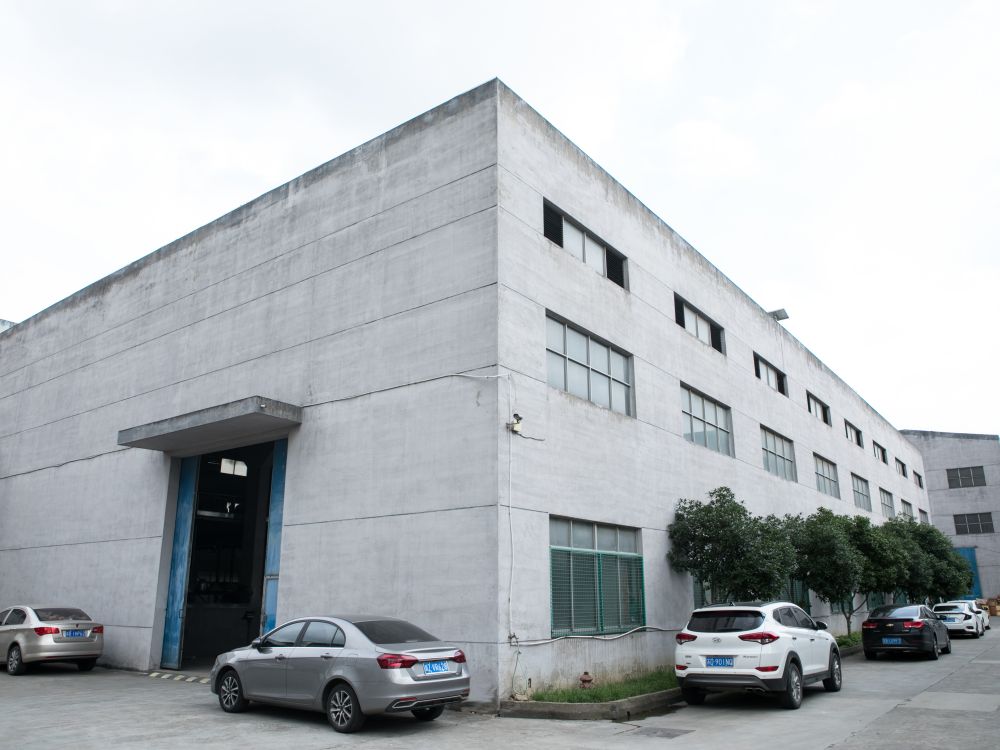

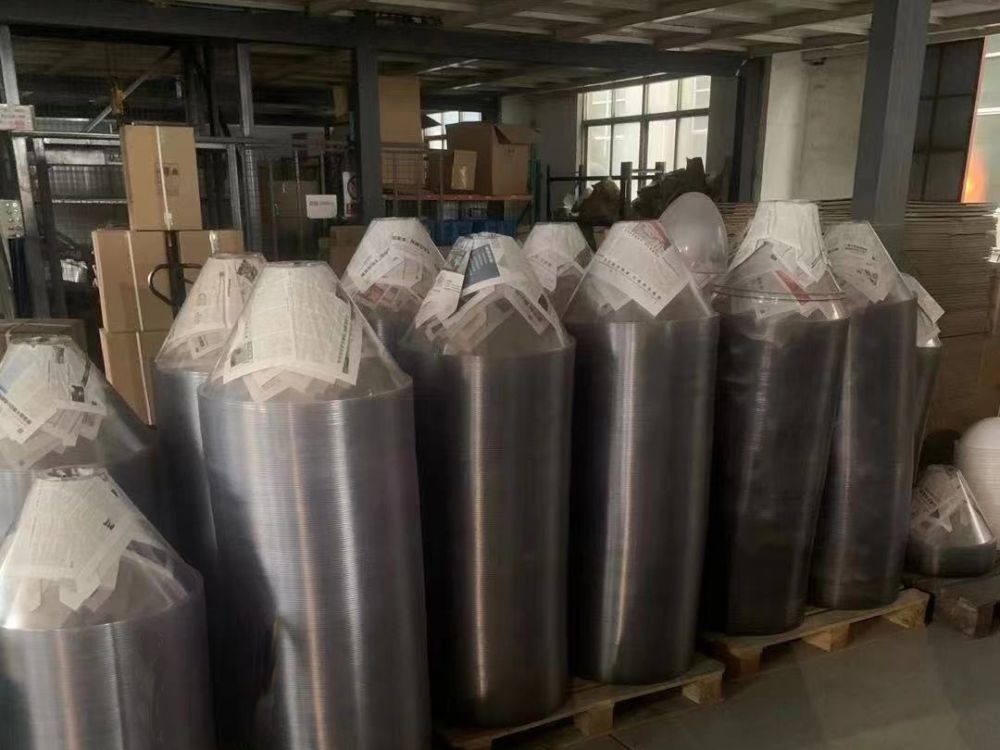

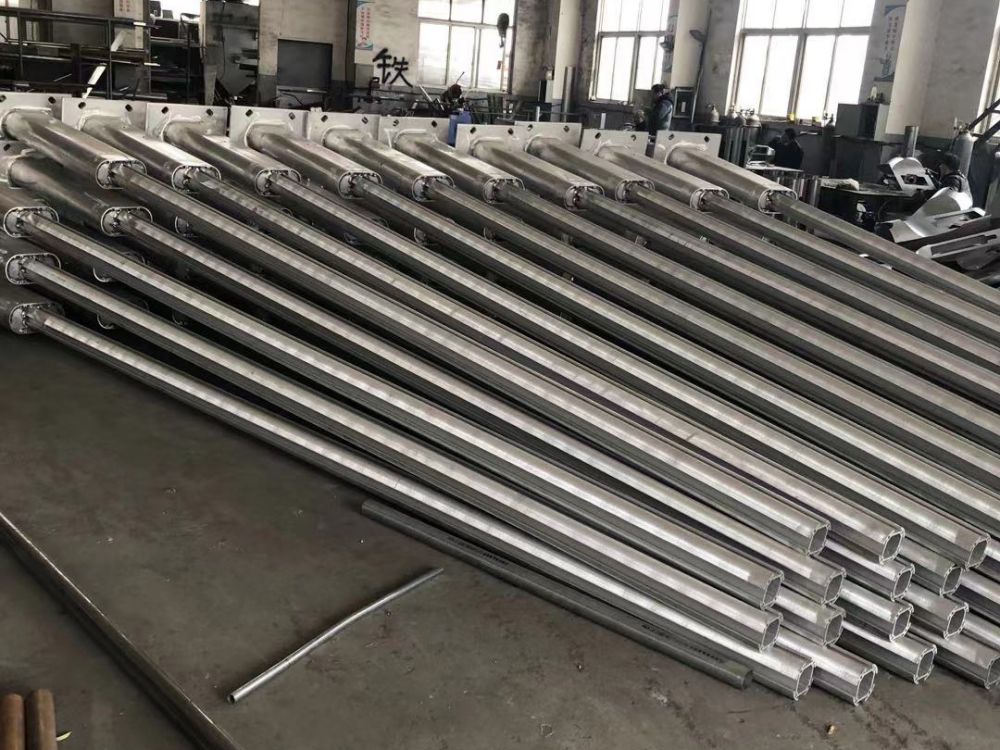

Factory Tour

Factory-Tour-231
Factory-Tour-161

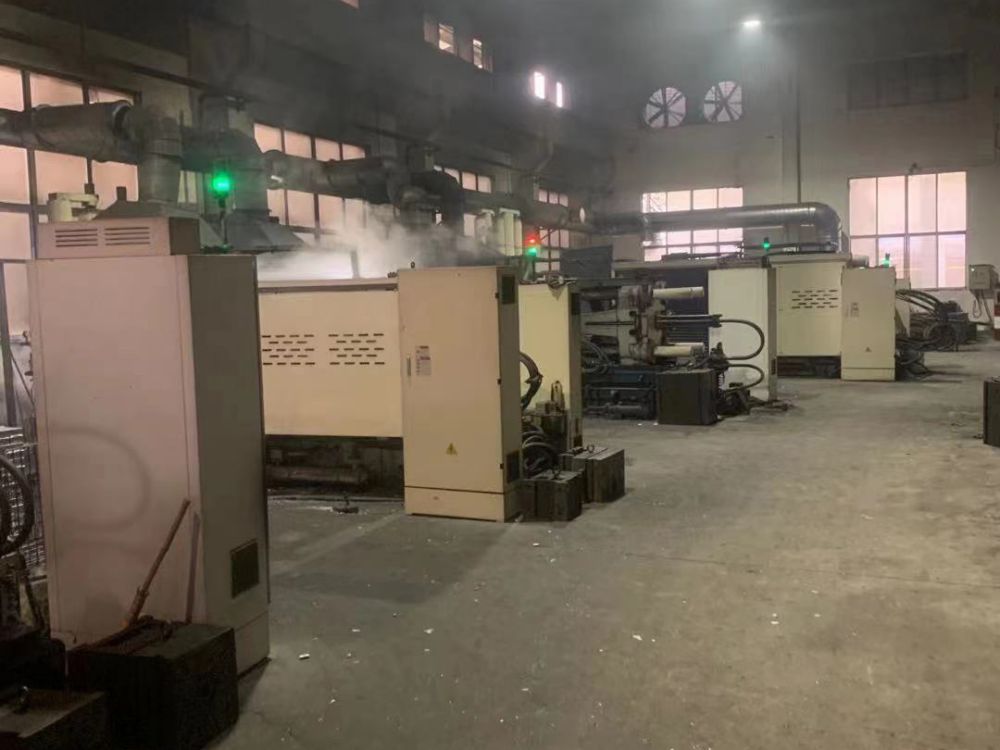

Factory Tour (18)
