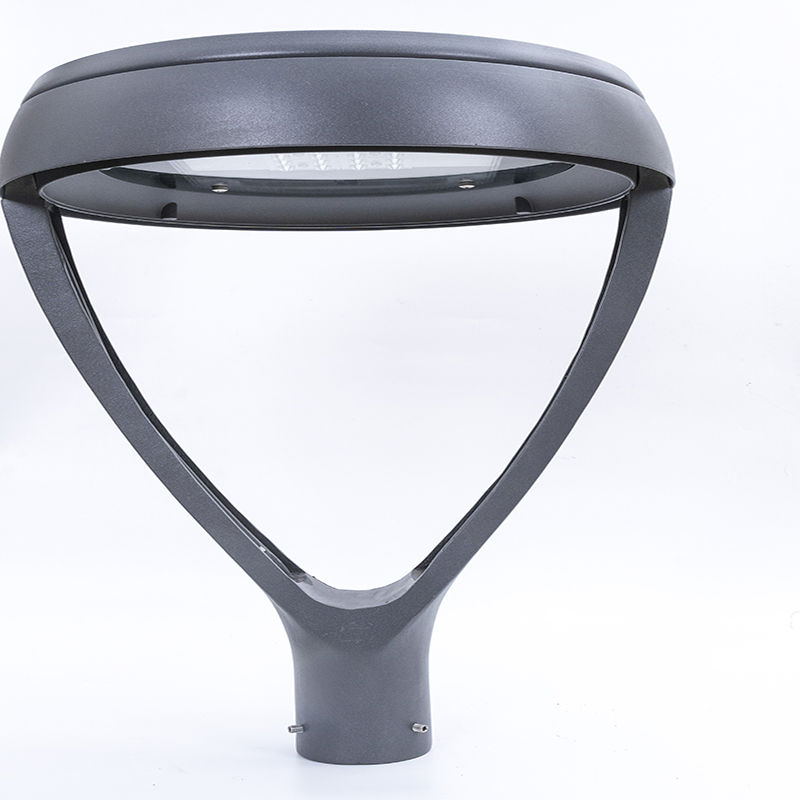

TYDT-6 Waterproof and Dust proof IP65Garden Light for Yard and Park

Short Description:

This waterproof garden light TYDT-6 is also our new designed garden light and courtyard light. Its easy and simple installation, which is fixed to the lamp pole with a small number of sufficiently long bolts. This lamp can be installed in two different ways.Maintenance is also simple and easy to operate, just manually unscrew the top trim.

It has ha elegant appearance which is highly favored by our customers.  And also it has two supporting pillars, which can detachable during packaging, to save packaging and transportation costs.


Product Detail

Product Tags

Product Description

Day

Night

● The lamp housing made of high-quality die-casting aluminum with surface treatment pure polyester electrostatic spraying prevent rust. It has excellent thermal radiation, optical and electrical capabilities.



● The whole lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.





● The light source is an LED module, matched the rated power from 30 to 60 watts, and more power can be customized. The light source with high-quality LED chips selected and equipped with internationally well-known brand drivers to ensure the working life of the light.



●The waterproof garden light applicable for the garden, parking lot, building, squares, residential areas, parks, streets, gardens, and city walkways using.







3

Technical parameters

Product Parameters:

Code of Product:

TYDT-6

Dimension(mm):

Φ450mm*H740mm

Material of Housing：

High pressure die-casting aluminum

Material of Cover：

PS or PC

Wattage(w)：

30W- 60W

Color temperature(k)：

2700-6500K

Luminous Flux(lm)：

3600LM/7200LM

Input  Voltage(v)：

AC85-265V

Frequency range(HZ)：

50/60HZ

Factor of Power：

PF> 0.9

Rendering Index of Color：

> 70

 Temperature of Working：

 -40℃-60℃

Humidity of Working：

10-90%

Life Time(h)：

50000 hours

Waterproof Grade：

IP65

Installation Spigot Size(mm)：

60mm  76mm

Applicable Height(m)：

3m -4m

Packing (mm)：

310*310*500MM/ 1 unit

N.W(KGS)：

8.95

G.W(KGS)：

9.5

Colors and Coating

In addition to these parameters, the TYDT-6 Waterproof and Dust proof IP65Garden Light for Yard and Park for yard is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
